Comec AC110 boring machine

This small Comec AC110 boring machine is made of top quality materials and thanks to our many years of experience and expertise in the automotive engine rebuilding market, we are able to build a perfect small and high-performance cylinder boring machine for the smaller engines. The precision and robustness of this machine are of the highest level. With the included cross table a fast centering between the cylinder and the drill rod can be realized very easily and quickly.

h

Comec AC110 boring machine information

The most important characteristics of this small cylinder boring machine are:

  • Adjustable spindle speed
  • Adjustable feed
  • Automatic control stop

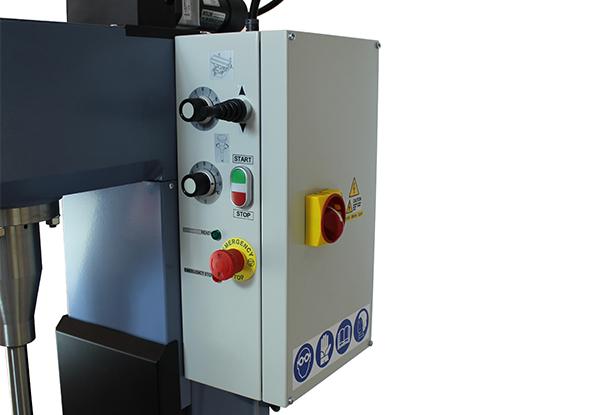

  • Practical control panel
  • Fast centering and locking of the cylinder and tool measurement
  • Easy to operate

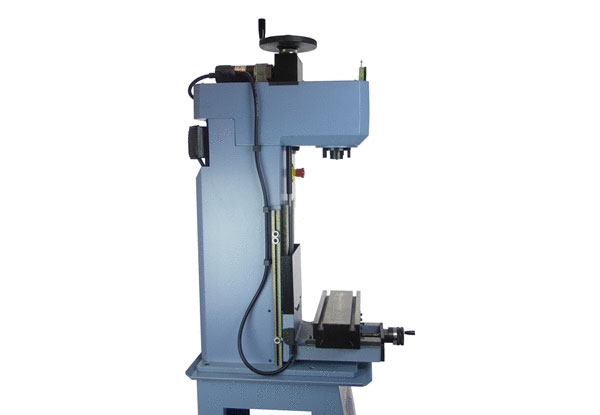

Comec AC110 cylinder boring machine
Comec AC110 cylinder boring machine
Comec AC110 cylinder boring machine
Comec AC110 cylinder boring machine
Comec AC110 cylinder boring machine

Comec AC110 Specifications

Boring capacity30 ÷ 125 mm
Boring speed 100 ÷ 660 RPM
Min-Max distance from head to table625 mm
Distance from spindle axis to column156 mm
Table surface400 x 150 mm
Max longitudinal table travel195 mm
Max transverse table travel100 mm
Table feed 1 ÷ 70 mm/min
Spindle motor power1.5 kW
Dimensions600x350x1600 mm
Weight300 kg

Standard equipment

  • Adjustable spindle speed
  • Adjustable table feed speed
  • Head power button

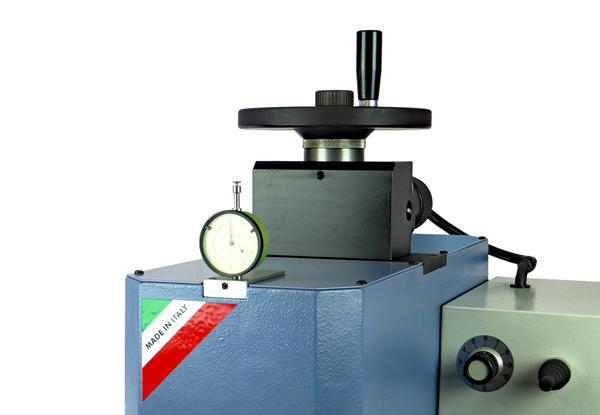

  • Boring depth device with dial indicator

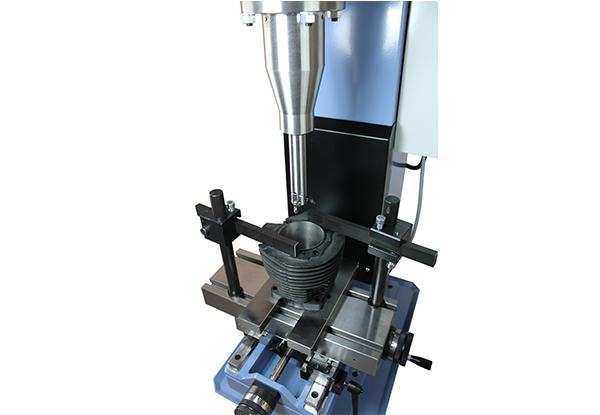

  • Cross table for quick positioning and centering of cylinder
  • Precision centering device with dial gauge
  • Adjustable control stop
  • Wrench set
  • Instruction manual

Accessories and spare parts

Comec AC110 cylinder boring machine

B03560
Ø 35÷60 mm L = 330 mm boring kit with dial gauge adjustment

Comec machines B06085

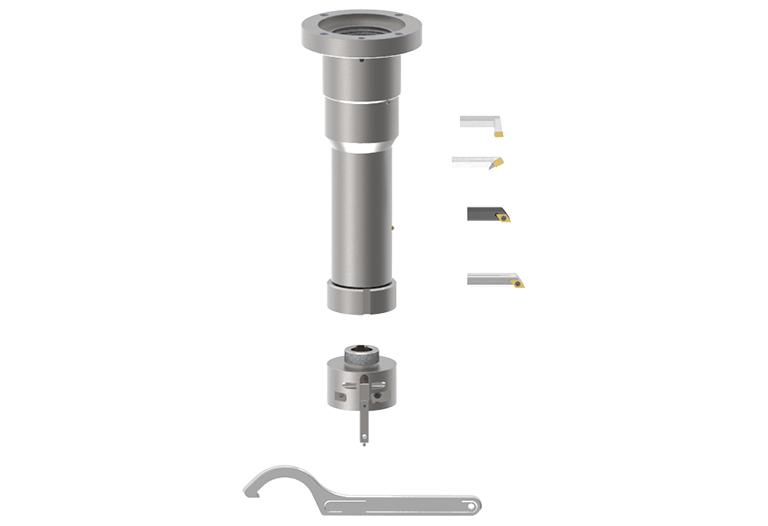

B06085
Ø 60÷85 mm L = 320 mm boring kit with dial gauge adjustment

Comec AC110 cylinder boring machine

C03560
Ø 35÷60 mm L = 330 mm boring kit with pre-setting system

Comec AC110 cylinder boring machine

C06085
Ø 60÷85 mm L = 320 mm boring kit with pre-setting system

Comec-machines-AC0090ACP090

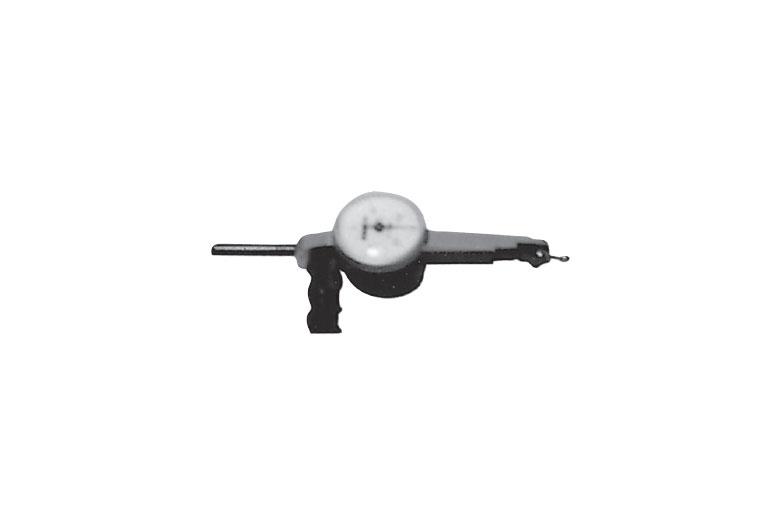

AC0090/ACP090
Dial gauge with feeler and clamps

Comec AC110 cylinder boring machine

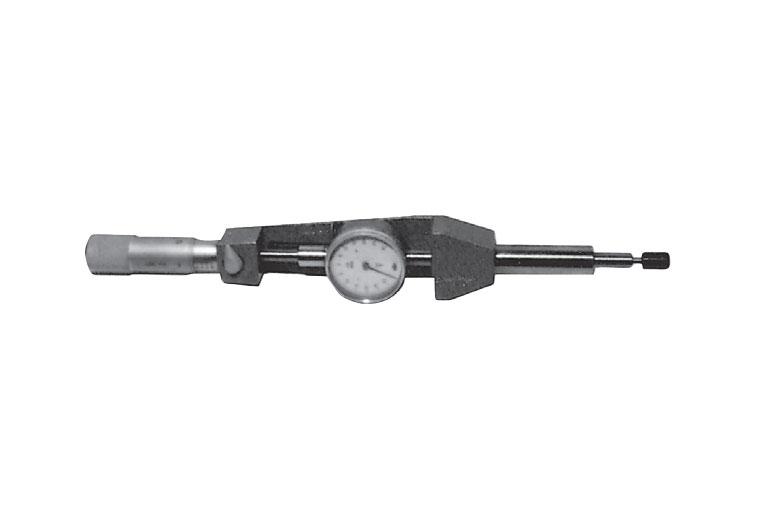

AC0091/ACP091
Dial gauge with micrometer

Comec AC110 cylinder boring machine

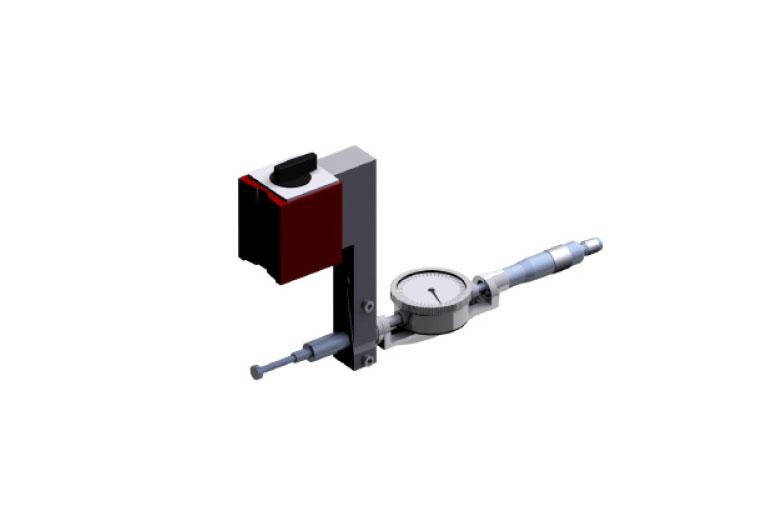

AC0094/ACP094
Dial gauge with micrometer with magnetic base

Comec AC110 cylinder boring machine

TB8512
Dia 85÷125 mm boring equipment

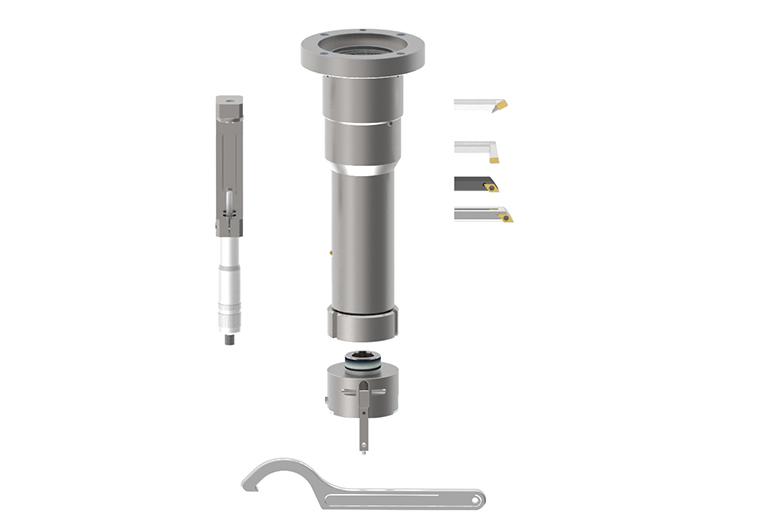

Comec machines TC8512

TC8512
Ø 85÷125 mm boring kit with pre-setting system

If you want more information about this machine, please contact FijnTechniek Fijnaart (FTF):
