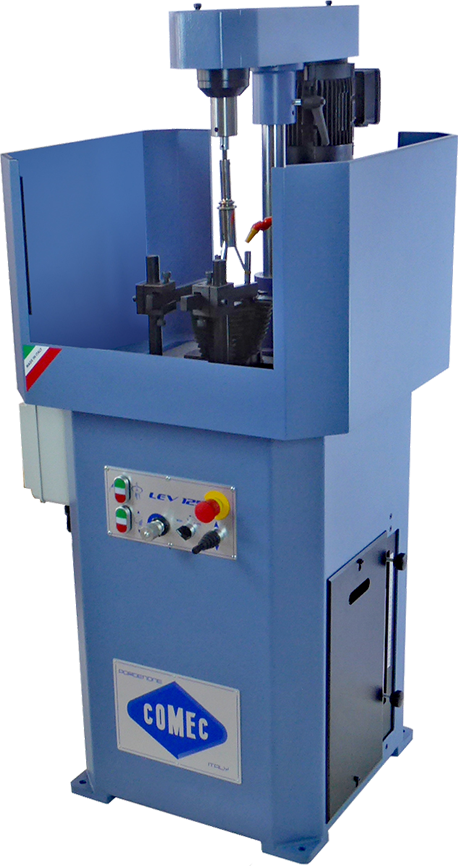

Comec LEV125 honing machine

The Comec LEV125 Honing machine is specifically made for honing the engines of motorcycles and cars and all other precise industrial applications where this operation is requested.

h

Comec LEV125 honing machine

The sturdy structure of the machine grants an extremely accurate surface finishing.

The honing head feeding system is equipped with a piston that is started by a hydraulic unit, and the valve-activated adjustable feed ensures the best finish.

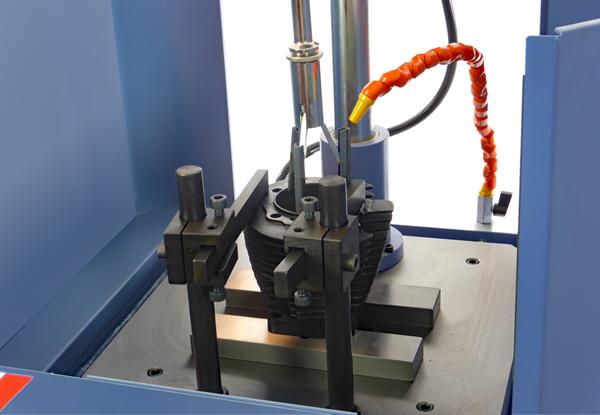

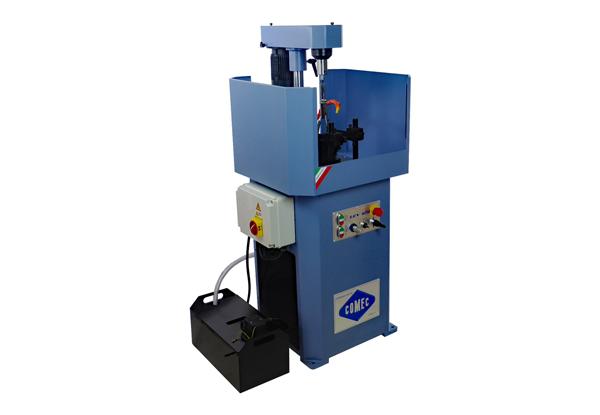

The Comec LEV125 honing machine is standard equipped with a quick workpiece clamping system and an efficient cooling plant with pump and settling tank.

Comec LEV125 honing machine
Comec LEV125 honing machine
Comec LEV125 honing machine
Comec LEV125 honing machine

Comec LEV125 Specifications

Minimum honing diameter30 mm
Maximum honing diameter120 mm
Maximum honing travel250 mm
Spindle rotation speed230-310-420 rpm
Head motor power1 Hp (0,72 Kw)
Hydraulic unit motor power0,75 Hp (0,55 Kw)
Dimensions (LxWxH)790x770x1610 mm
Weight235 Kg

Standard equipment

  • Base
  • Quick clamps
  • Splash and safety guard
  • Cooling plant with pump and settling tank
  • Pair of parallels (250x50x25 mm)
  • Ø 30 ÷ 90 mm expansible honing head
  • Wrench set
  • Instruction manual
