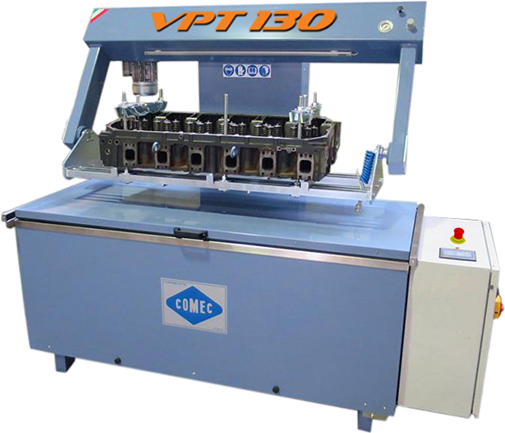

Comec VPT130 pressure tester for cylinder heads and blocks

The VPT130 is a tester tank allowing to easily and precisely detect any failure and wear on cylinder heads and blocks through their immersion in hot water.

h

Comec VPT130 Pressure tester

The tank and cover of the Comec VPT130 Pressure tester is made of stainless steel.
Its tank is perfectly insulated to keep the warmth inside.
Two powerful independent heating elements ensure gradual heating of the water.
The equal heating is controlled by an automatic timer and the electric consumptions can be reduced with the built-in heating program.

Comec VPT130 pressure tester
Comec VPT130 pressure tester
Comec VPT130 pressure tester
Comec VPT130 pressure tester

Comec VPT130 Specifications

Maximum cylinder head capacity1200x350x300 mm
Tank capacity490 l
Maximum cradle travel550 mm
Heating elements2 x 4,5 kW
Adjustable work temperature30 - 90° C
Cradle rotation speed4 rpm
Cradle up-down speed60 mm/sec
Hydraulic station motor0,75 kW
Cradle gearmotor0,25 kW
Dimensions (LxWxH)1800x1050x1700 mm
Weight400 Kg

Standard equipment

  • Flat cylinder head support parallels
  • Adjustable support parallels for wedge-shaped cylinder heads
  • Fixing crossbeams of Plexiglas plate with plates
  • L=380 mm fixing tension rod with nuts and washers
  • 500x250x30 mm Plexiglas plate
  • 800x250x30 mm Plexiglas plate
  • 500x500x8 mm Rubber sheet
  • 500x500x3 mm Rubber sheet
  • Side-locking plate with quick-release coupling
  • Instruction manual

Get in touch

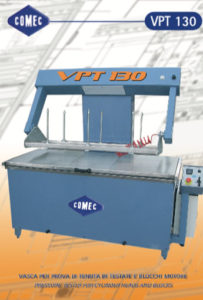

Comec machines VPT130 Pressure tester
