Comec BST860 cylinder head work station

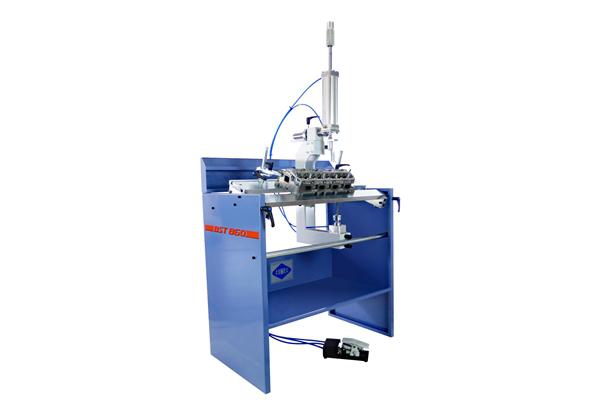

The Comec BST860 is the ideal machine for working on cylinder heads. This Comec workstation makes it possible to do various operations. This makes assembling and dismantling valves a breeze.

h

Comec BST860 Cylinder head work station

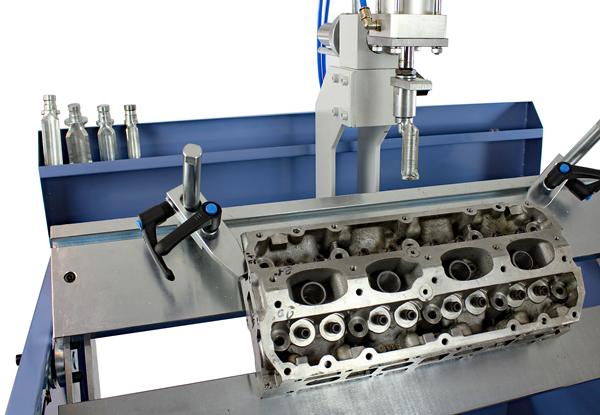

Due to the various adjustment options, each cylinder head can easily be brought into the correct position and fixed with the quick-release system. The machine is equipped with a 360 ° rolling table. This makes all points on the cylinder head easily accessible.

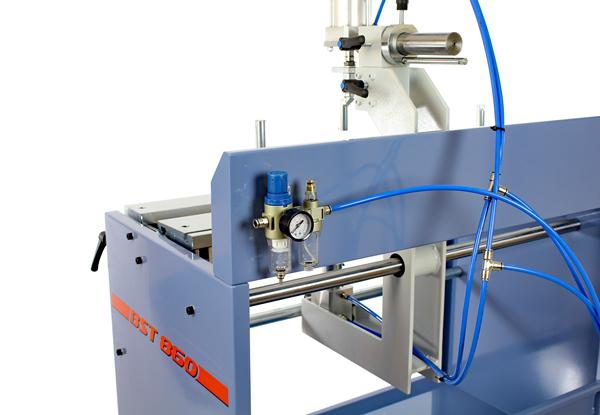

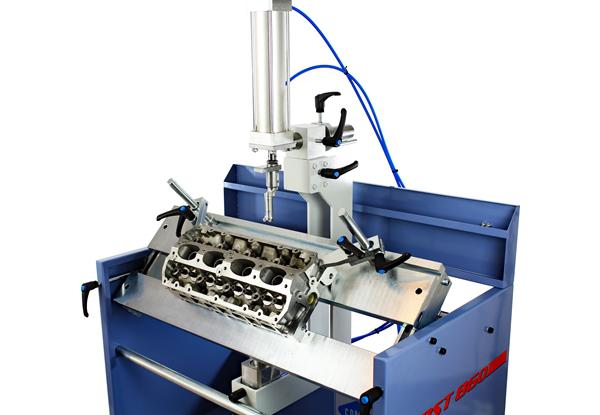

The pneumatic cylinder on the Comec BST860 makes replacing valves very easy! The pressure stamp can be raised and lowered by means of 2 foot pedals. Because of this you always have two hands available for working on the cylinder head. The cylinder is of course provided with a pressure reducing valve, so that the pressure can be easily adjusted.

Comec machines BST860 cylinder head work station
Comec machines BST860 cylinder head work station
Comec machines BST860 cylinder head work station
Comec machines BST860 cylinder head work station
Comec machines BST860 cylinder head work station
Comec machines BST860 cylinder head work station
Comec machines BST860 cylinder head work station

Specifications Comec BST860

Table dimensions870x400 mm
Useful table surface850 mm
Air pressure6÷8 bar
Dimensions (LxWxH)960x680x1680mm
Weight131 kg

Standard equipment

  • Upper adjustable pneumatic cylinder
  • Lower retainer pneumatic cylinder
  • Pneumatic foot control
  • Filter-lubricator unit with pressure adjuster and manometer
  • 360° roll-over table
  • Quick clamps for cylinder heads
  • Set of different sizes retaining tips
  • Wrench set
  • Instruction manual
