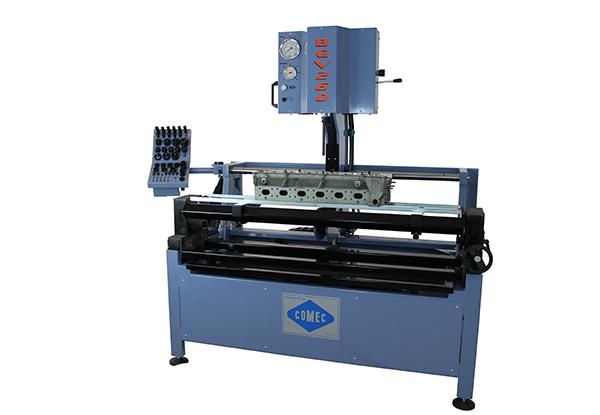

Comec BGV260 Cylinder head guide press

The Comec BGV260 is the ideal machine for quickly and accurately replacing valve guides in cylinder heads.
Cylinder heads of small engines, but also of large industrial diesel engines can be processed with this. The Comec BGV260 is a true all-rounder in valve guide replacement. It is a robust machine with an extremely strong construction.

h

Comec BGV260 Cylinder head guide press

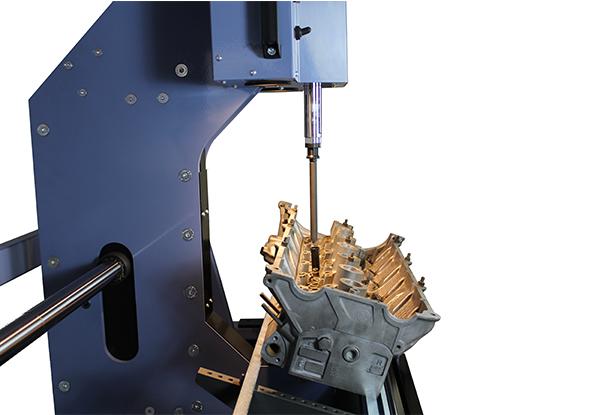

The Comec BGV260 is equipped with a combined hydraulic / mechanical system. In this way it is ensured that the upper hydraulic cylinder presses evenly on the guide to be removed. At the same time, the head is pushed up so that the operating pressure can be determined. The measured value is displayed by two separate manometers, so that the value can be read in both Kgs and Ton. The required working pressure can thus be determined and adjusted to a maximum of 5 tonnes.

The robust Comec BGV260 offers stable support for the most heavy cylinder heads. With the side controls, the platform can be tilted to an angle of ± 50 °, so that an optimum working position can be found.

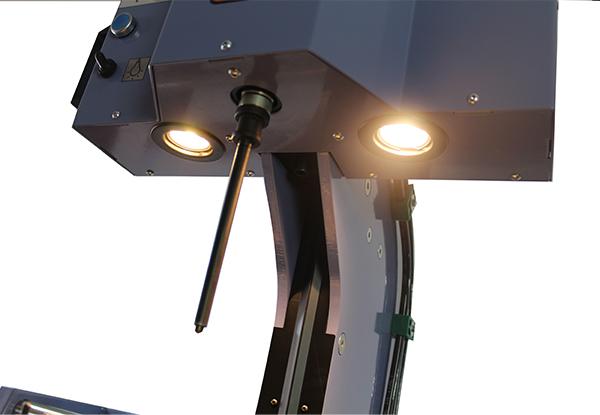

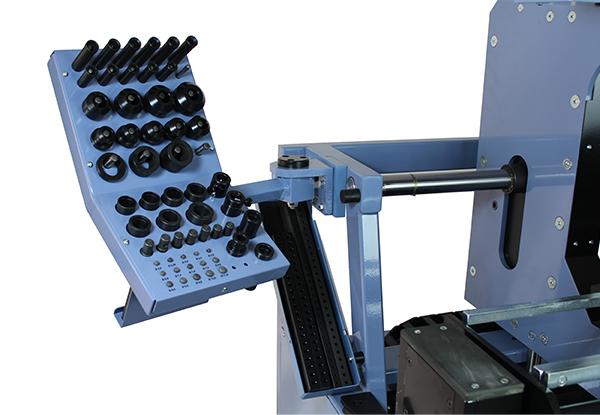

The machine is equipped with clear LED lighting. In addition, the tool panel is very handy and makes the machine very complete.

Comec machines BGV260 Cylinder head guide press
Comec machines BGV260 Cylinder head guide press
Comec machines BGV260 Cylinder head guide press
Comec machines BGV260 Cylinder head guide press

Specifications Comec BGV260

Horizontal movement1100 mm
Vertical movement50 mm
Upper cylinder stroke260 mm
Table rotation± 50°
Working pressure180 bar
Working force0 - 5 ton
Motor power1,5 kW
Electric voltage230V, 1pH, 50Hz
Dimensions (LxWxH)1600 x 900 x 1700 mm
Weight480 Kg

Standard equipment

  • Hydraulic unit
  • Working pressure reading system with 2 pressure gauges
  • Swivel cradle with adjustable supports
  • Set of push-guide tips
  • Equipment drawer
  • Integrated LED spotlights
  • Wrench set
  • Instruction manual
