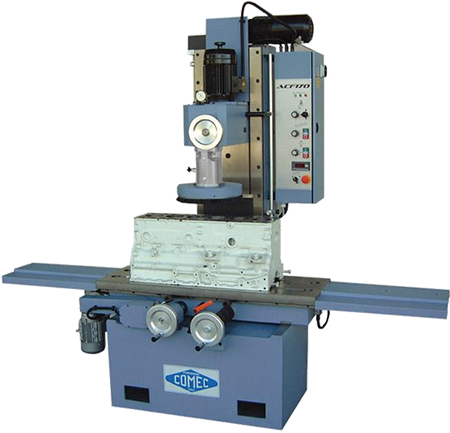

Comec ACF170 cylinder boring and resurfacing machine

The Comec ACF170 combines boring as well as resurfacing, which makes this machine an ideal combination tool for overhauling engine blocks of cars and trucks. Normally you only see this with very expensive models, but the Comec ACF170 can do it all!

h

Comec ACF170 General information

The machine table has a large feeding range in both length and depth. The head also has a high range in vertical displacement. This machine has a large working capacity. However, the machine itself has limited dimensions and is therefore ideal for the overhaul workshop with limited space.

The application of technical innovative solutions improves the performance of this machine and offers more possibilities. Because we extensively test the machines, we offer the guarantee of excellent quality, workmanship and precision.

Comec ACF170 Specifications

Boring range30÷170 mm
Max Vertical travel of the Head670 mm
Max distance from head to table940 mm
Distance from spindle center to column290 mm
Spindle rotation speed (adjustable)75÷700 rpm
Spindle feed0÷175 mm/min.
Table surface1040x370 mm
Max longitudinal table travel1000 mm
Max transverse table travel200 mm
Spindle motor power1.5 kW
Rapid feed motor power0.37 kW
Dimensions (LxWxH)1030x1020x2000 mm
Net weight1150 Kg
Gross weight1330 Kg

Standard equipment

  • Adjustable spindle speed with digital indicator
  • Adjustable boring bar feed
  • Adjustable table feed (only model ACF)
  • Tool setting dial indicator with magnetic base
  • Depth of boring device with dial indicator
  • Precision centering device with dial gauge
  • Adjustable control stop
  • PV0160 Pair of parallel supports
  • Wrench set
  • Instruction manual

If you want more information about this machine, please contact FijnTechniek Fijnaart (FTF):

www.ftfmachines.com  –  info@ftf.nl

Accessories and spare parts

Comec ACF170 cylinder boring and resurfacing machine

PV1516
60° – 90° V-block blueprinting mounting fixture

Comec ACF170 cylinder boring and resurfacing machine

PV0025
Pair of fast clamping column

Comec ACF170 cylinder boring and resurfacing machine

PV0007
Pair of parallel supports

Comec ACF170 cylinder boring and resurfacing machine

PV0160
Pair of parallel supports

Comec ACF170 cylinder boring and resurfacing machine

UT1320
3/8” CBN/PCD insert tool holder

Comec ACF170 cylinder boring and resurfacing machine

UT1355
1/2” CBN insert for cast iron

Comec ACF170 cylinder boring and resurfacing machine

UT1356
1/2” PCD insert for aluminum

Comec ACF170 cylinder boring and resurfacing machine

B03560
Ø 35÷60 mm L = 330 mm boring kit with dial gauge adjustment

Ø 60-85 mm L = 320 mm boring kit with dial gauge adjustment

B06085
Ø 60÷85 mm L = 320 mm boring kit with dial gauge adjustment

Ø 35-60 mm L = 330 mm boring kit with pre-setting system

C03560
Ø 35÷60 mm L = 330 mm boring kit with pre-setting system

Ø 60-85 mm L = 320 mm boring kit with pre-setting system

C06085
Ø 60÷85 mm L = 320 mm boring kit with pre-setting system

Ø 85-170 mm L= 360 mm boring kit with pre-setting system

C85170
Ø 85÷170 mm L= 360 mm boring kit with pre-setting system

Ø 85-170 mm L = 360 mm boring kit dial gauge adjustment

B85170
Ø 85÷170 mm L = 360 mm boring kit dial gauge adjustment

1/2” CBN or PCD milling plate dia. 320 mm (available only for ACF)

PF0320
1/2” CBN or PCD milling plate dia. 320 mm (available only for ACF)

1/2”CBN/PCD insert tool holder

UT1330
1/2”CBN/PCD insert tool holder

3/8” CBN Insert for cast iron

UT1345
3/8” CBN Insert for cast iron

3/8” PCD Insert for aluminium

UT1346
3/8” PCD Insert for aluminium
