Comec FSV120 Seat and guide machine

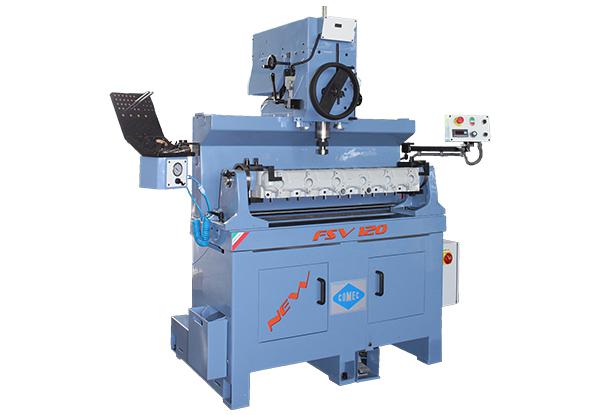

The Comec FSV120 Seat and guide machine is specially designed for cylinder heads of trucks. The perfect end results are due to the extreme ease of use and the all over working precision of the machine.

h

Comec FSV120 Seat and guide machine

The movable head can be moved very lightly through the air cushion over which it moves. This allows the head to be positioned very quickly and accurately to place the pilot in the valve guide.

The fixed pilot, in combination with the tool head on a spherical adapter, guarantees fast and correct alignment and centering. Thanks to the fast front wheel and the fine micrometric adjustment knob, these ensure a perfect tool speed.

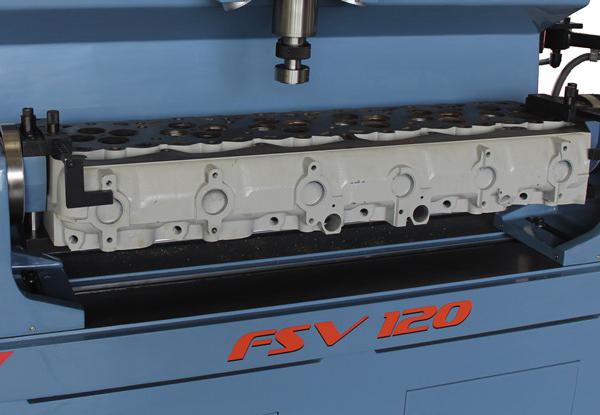

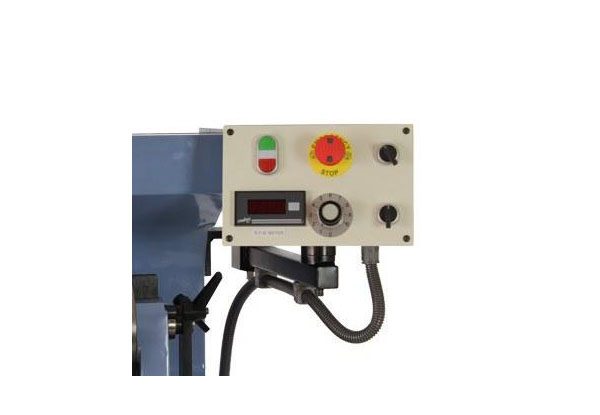

Tool vibrations are prevented by the rigid structure of the 360​​° rotating armature. This results in a high quality finish. Mounting and securing the cylinder head can be very simple and quick. The adjustment is made by the micrometric adjustment handwheel with digital readout.

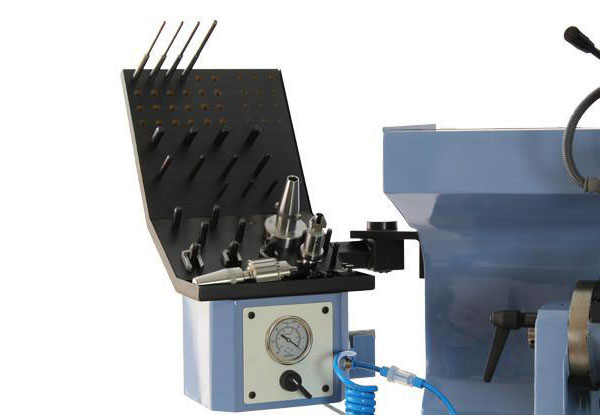

Various handy accessories, such as the vacuum tester, a bright LED machine light, tool holder and the storage drawer are part of the standard equipment.

Comec FSV120 Valve seat machine
Comec FSV120 Valve seat machine
Comec FSV120 Valve seat machine
Comec FSV120 Valve seat machine

Comec FSV120 Specifications

Max cylinder head dimensions (LxWxH) 1120x304x150 mm
Valve seat diameter range 14÷76 mm
Spindle diameter 56 mm
Spindle toper ISO 30
Spindle speed (range) 0-500 RPM
Spindle motor power 1,5kW
Spinde travel/Stroke vertical 180 mm
Work head travel horizontol-airfloot/airclamp 1340 mm
Work head travel In/Out-airfloot/airclamp50 mm
Work head tilt (either side of vertical zero) ±10°
Maximum distance from table to spindle 473 mm
Working air pressure 6 bar
Dimensions (LxWxH)1000x1635x2210 mm
Weight 1100 Kg

Standard equipment

  • Air float Work Head for light positioning
  • Air pressure filter/regulator
  • Universal 360 degree roll over Cylinder Head fixture
  • Adjustable Clamping Kit for special cylinder heads
  • Hardened spindle with taper tool holder
  • Infinitely variable spindle speed
  • Adjustable end stroke
  • Electronic level with readout
  • Cutting depth measuring dial gauge
  • APM100 Ball head drive adaptor
  • TH0375 Tool holder mandrel for 9,52 mm pilots
  • CUT2000 insert tool holder (18-30 mm)
  • CUT2001 insert tool holder (26-42 mm)
  • CUT2002 insert tool holder (40-60 mm)
  • TSF010 Tool setting fixture
  • Vacuum tester complete with pads
  • LED lighting system
  • Swing arm tool storage Cabinet
  • Removable Chip tray
  • Wrench set
  • Instruction manual

Accessories and spare parts

Comec FSV100 Multi-angle cutting Insert – A style

UTxxxx- A
Multi-angle cutting Insert – A style

Comec FSV100 Multi-angle cutting Insert – B style

UTxxxx- B
Multi-angle cutting Insert – B style

Comec FSV100 Drill chuck dia. 3÷16 mm with adapter taper ISO-30

MPP316
Drill chuck dia. 3÷16 mm with adapter taper ISO-30

Comec FSV500 Tool sharpening attachment with diamond wheel

FSV500
Tool sharpening attachment with diamond wheel

Comec TH0375 Ball head Tool holder

TH0375
Ball head Tool holder

Comec APM100 Ball Head drive adaptor

APM100
Ball Head drive adaptor

Comec TSF010 Tool Setting Fixture

TSF010
Tool Setting Fixture

Comec CUTxxxx Insert holder

CUTxxxx
Insert holder

Comec CPxxxx Fixed Tapered Carbide Pilot (Standard Shank 9.52 mm – .375”)

CPxxxx
Fixed Tapered Carbide Pilot (Standard Shank 9.52 mm – .375”)

Comec MPxxxx Fixed Tapered Carbide Pilot (Mini Shank 6,00 mm – .236”)

MPxxxx
Fixed Tapered Carbide Pilot (Mini Shank 6,00 mm – .236”)
