Comec LEV300 honing machine

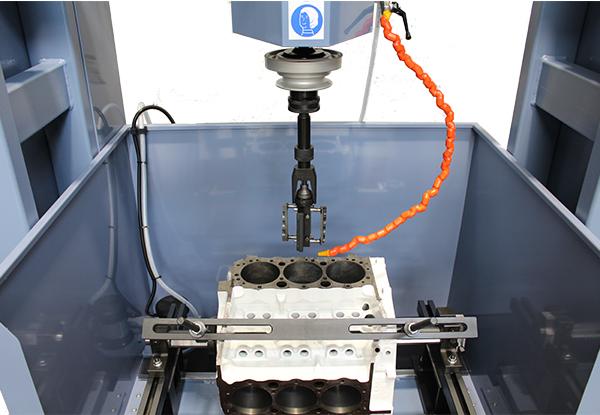

The LEV300 is a machine specifically engineered for cylinder honing of cylinder blocks, as well as for all other kind of precise industrial applications where such operation is requested.

h

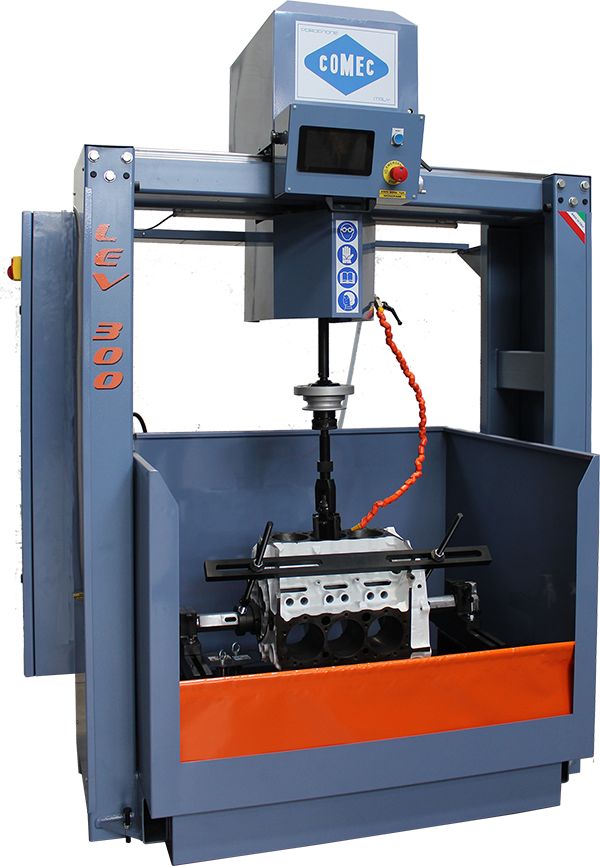

Comec LEV300 Honing machine

The machine offers a high structural rigidity, due to a robust, heavy and sturdy construction of the machine, so that a extremely accurate finishing is assured.

The feeding system of the honey head is carried out by a recirculating ball screw and the rotation is activated by a powerful electric motor.

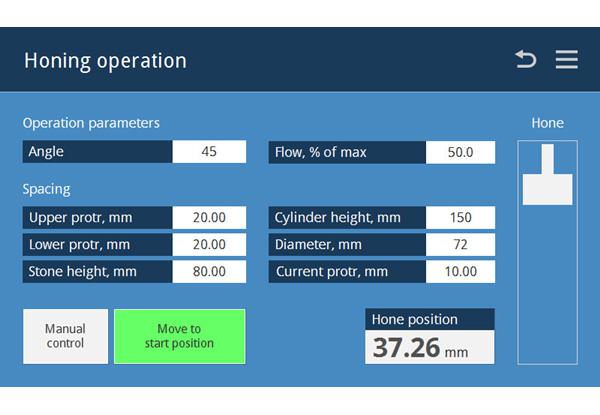

The touchscreen panel is located in front of the operator. On this touchscreen the parameters can be entered which are then converted by the software into executable instructions for the machine.



Comec LEV300 Honing machine
Comec LEV300 honing machine
Comec LEV300 honing machine
Comec LEV300 honing machine

Comec LEV300 Specifications

Min-Max honing diameter 25÷500 mm
Max spindle travel300 mm
Spindle rotation speed0÷170 rpm
Max distance table-honing head600 mm
Max longitudinal head travel780 mm
Max workpiece dimensions900x800x550 mm
Spindle motor0,75kW
Honer Feed motor1,5 kW (7Nm)
Cooling pump motor0,15kW
Dimensions (LxWxH)1560x1020x2160 mm
Net weight600 Kg

Standard equipment

  • Head movement on linear guides
  • Vertical honing head travel by recirculating ball screw
  • Touch screen control panel
  • Electronic handwheel for honing head movement
  • Operating software for manual and automatic working process
  • Double effect hand-wheel for expanding/retracting the honing head
  • Dia. 63÷139 mm expansible honing head
  • Cooling system with magnetic filtering system
  • Universal cylinder blocks fixture
  • Splash and safety guards
  • Wrench set
  • Instruction manual
