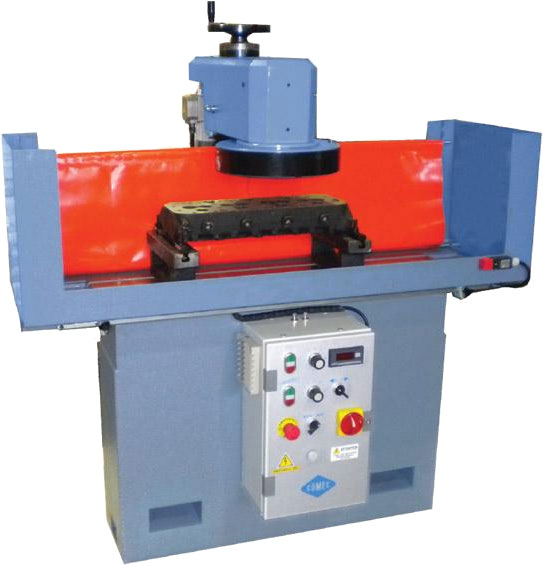

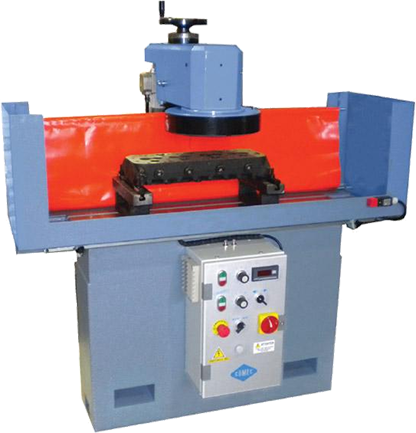

Comec RP850 Head and block resurfacer

The Comec RP850 resurfacer has the experience in resurfacing cast iron and aluminium at high speed, by using special tools like the CBN or the PCD, has offered us the opportunity to develop and manufacture this resurfacing machine for cylinder heads and motor-cylinder blocks.

h

Comec RP850 resurfacer

Features like a wide work capacity (1115 mm table travel) despite its modest dimensions, the adjustable head and table speeds with the use of frequency inverters, and the extremely competitive price make it the perfect choice for small garages and big engine rebuilding workshop.

Comec machines RP850 Head and block resurfacer
Comec machines RP850 Head and block resurfacer
Comec machines RP850 Head and block resurfacer
Comec machines RP850 Head and block resurfacer

Comec RP850 specifications

Table travel1015 mm
Max workpiece length850 mm
Max workpiece width330 mm
Max workpiece height360 mm
Min workpiece height160 mm
Milling wheel diameter330 mm (13”)
Variable head speed rotation300 ÷ 1200 rpm
Variable table travel speed0 ÷ 600 mm/min
Head motor1,5 Kw
Table motor0,75 Kw
Dimensions (LxWxH)1550x870x1720 mm
Weight591 Kg

Standard equipment

  • Variable spindle speed complete with digital read-out
  • Adjustable table feed
  • Manual/continuous working cycle programmes
  • CBN/PCD milling plate dia. 330mm (13”)
  • Toolhoder UT1350 and CBN insert UT1355
  • Base-integrated control panel
  • Safety guard with policarbonate shield
  • PV0006 Pair of parallel supports
  • PV0021 Large clamps
  • PV0022 Small clamps
  • Lubricant for slides
  • Wrench set
  • Instruction manual

Accessories and spare parts

Comec RP850 resurfacer

PVA015
Adjustable universal fixture wit parallels

Comec RP850 resurfacer

PVA0007
PV0007 Pair of parallel supports  H=49mm

Comec RP850 resurfacer

UT1355
1/2” CBN Insert for cast iron

Comec RP850 resurfacer

UT1356
1/2” PCD Insert for aluminium

UT1390
ALP insert tool holder for UT1392

UT1392
ALP insert for aluminum with prechambers

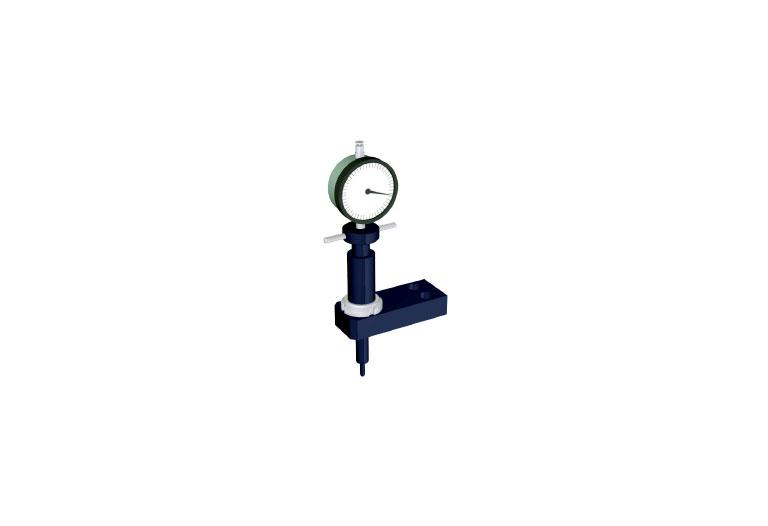

TST010
Downfeed depth assembly with indicator

UT1330
1/2″ Insert tool holder for UT1355 (CBN), UT1356 (PCD)
