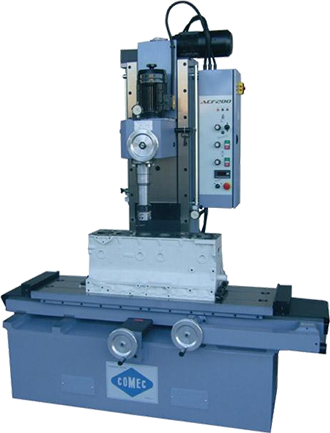

Comec ACF200 cylinder boring and resurfacing machine

The Comec ACF200 cylinder boring and resurfacing machine is a professional combination machine for boring and resurfacing engine blocks and cylinder heads of cars and trucks. Normally you see this kind of possibilities only with much more expensive versions.

h

Comec ACF200 General information

This machine is very compact and still has a considerable large working capacity due to the large table and the large range of the table feed. Also the machine head has a large vertical feed range.

The Comec ACF200 is very robust and has a perfect finish. Thanks to the application of technical innovations, this machine is very precise and production performance has been improved.

Specifications Comec ACF200

Boring range30÷170 mm
Max head vertical travel670 mm
Min-Max distance from head to table370÷1020 mm
Distance between spindle C/L and column290 mm
Table surface1340x370 mm
Max table longitudinal travel1200 mm
Max table transverse travel200 mm
Adjustable spindle rotation speed75÷850 rpm
Adjustable boring bar feed0÷175 mm/min.
Adjustable table feed0÷460 mm/min.
Spindle motor power1.5 kW
Rapid feed motor power0.37 kW
Table feed motor power0.55 kW
Dimensions (LxWxH)1860x1150x2170 mm
Weight1380 Kg

Standard equipment

  • Adjustable spindle speed with digital indicator
  • Adjustable boring bar feed
  • Adjustable table feed (only model ACF)
  • 1/2” CBN or PCD milling plate dia. 320 mm
  • Tool setting dial indicator with magnetic base
  • Depth of boring device with dial indicator
  • Precision centering device with dial gauge
  • Adjustable control stop
  • PV0160 Pair of parallel supports
  • Wrench set
  • Instruction manual

Accessories and spare parts

Comec machines PV1516

PV1516
60° – 90° V-block blueprinting mounting fixture

Comec machines PV0025

PV0025
Pair of fast clamping column

PV0007
Pair of parallel supports H=49mm

Comec machines PV0160

PV0160
Pair of parallel supports

Comec machines UT1320

UT1320
3/8” CBN/PCD insert tool holder

UT1355
1/2″ CBN for cast iron

UT1356
1/2″ PCD insert for aluminum

Comec machines B03560

B03560
Ø 35÷60 mm L = 330 mm boring kit with dial gauge adjustment

Comec machines B06085

B06085
Ø 60÷85 mm L = 320 mm boring kit with dial gauge adjustment

Comec machines C03560

C03560
Ø 35÷60 mm L = 330 mm boring kit with pre-setting system

Comec machines C06085

C06085
Ø 60÷85 mm L = 320 mm boring kit with pre-setting system

Comec machines C85170

C85170
Ø 85÷170 mm L= 360 mm boring kit with pre-setting system

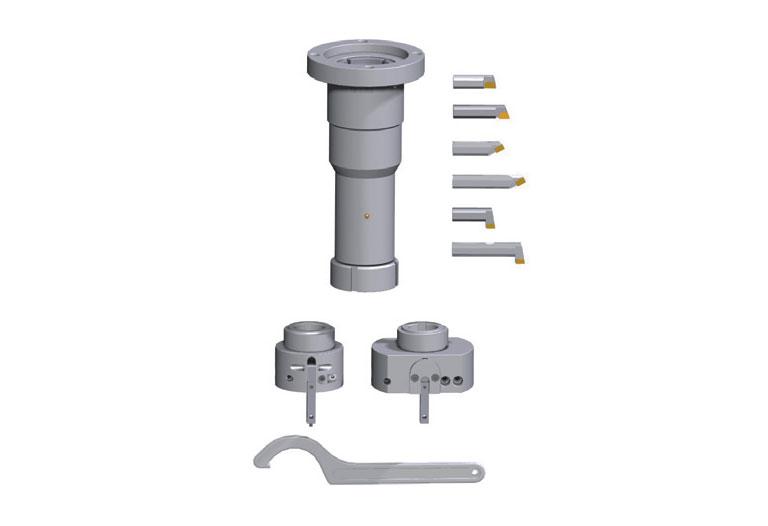

Comec machines B85170

B85170
Ø 85÷170 mm L = 360 mm boring kit dial gauge adjustment

Comec machines PF0320

PF0320
1/2” CBN or PCD milling plate dia. 320 mm (available only for ACF)

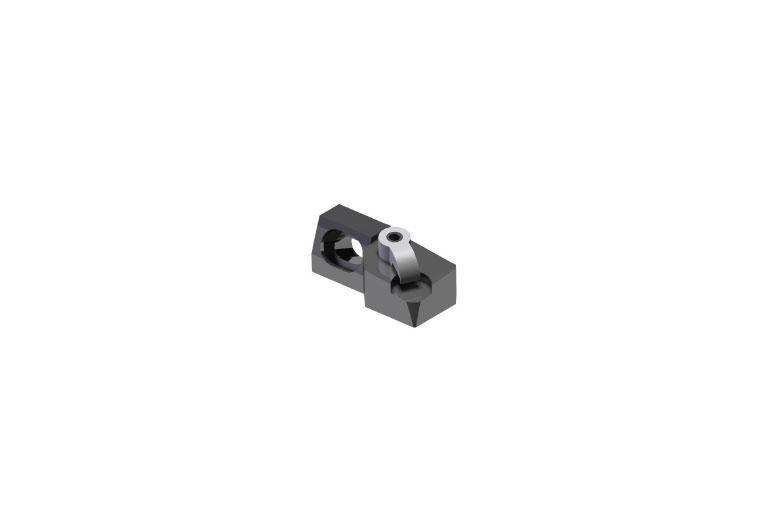

Comec machines UT1330

UT1330
1/2”CBN/PCD insert tool holder

Comec machines UT1345

UT1345
3/8” CBN Insert for cast iron

Comec machines UT1346

UT1346
3/8” PCD Insert for aluminium

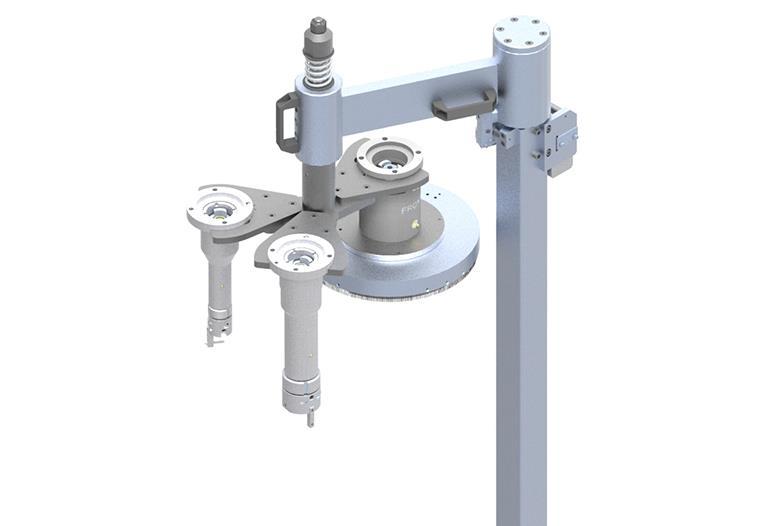

Comec machines SSR200

SSR200
Spindle storage rack
