Comec ACF200 CNC cylinder boring-resurfacing machine

Comec ACF200 CNC Cylinder boring-resurfacing machine. For the revision of engine blocks from cars and trucks. It can be useful that different operations can take place on a single machine. The 2 most important operations are boring and surfacing.

h

Comec ACF200 CNC General information

The Comec ACF200 CNC boring machine combines these two most important operations in one machine! Thanks to the CNC control, this is now also fully automatic, fast and extremely accurate.

The introduction of highly innovative solutions makes this machine even faster and more practical to use. This machine is of course very robust and extremely precise, resulting in a high-quality end product.

Comec ACF200 CNC cylinder boring-resurfacing machine
Comec ACF200 CNC cylinder boring-resurfacing machine
Comec ACF200 CNC cylinder boring-resurfacing machine
Comec ACF200 CNC cylinder boring-resurfacing machine
Comec ACF200 CNC cylinder boring-resurfacing machine

Comec ACF200 CNC Cylinder boring-resurfacing machine

Boring range30÷170 mm
Max head vertical travel700 mm
Min-Max distance from head to table370÷1020 mm
Distance between spindle C/L and column290 mm
Table surface1340x370 mm
Max table longitudinal travel1200 mm
Max table transverse travel200 mm
Adjustable spindle rotation speed75÷850 rpm
Adjustable boring bar feed0÷3000 mm/min.
Adjustable table feed0÷3000 mm/min.
Spindle motor power1.5 kW
Rapid feed motor power1.27 N/m
Table and travers feed motor power1.27 N/m
Dimensions (LxWxH)2045x1245x2175 mm
Weight1540 Kg

Standard equipment

  • Computer Numerical Control using LINUX Operating System and ARMv8 CPU Processor
  • Precision Ball screw drives on 3 Axis
  • Movements by linear railways on 3 Axis
  • Brushless motors on 3 axis controlled by CNC

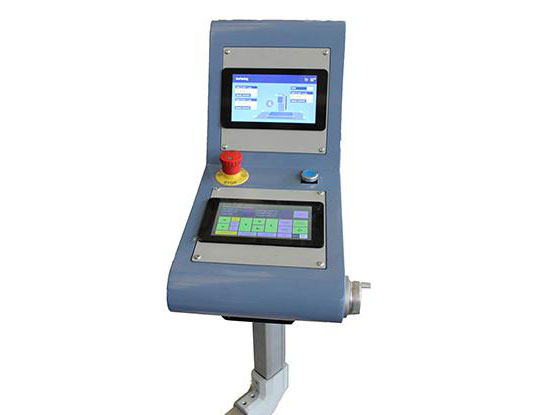

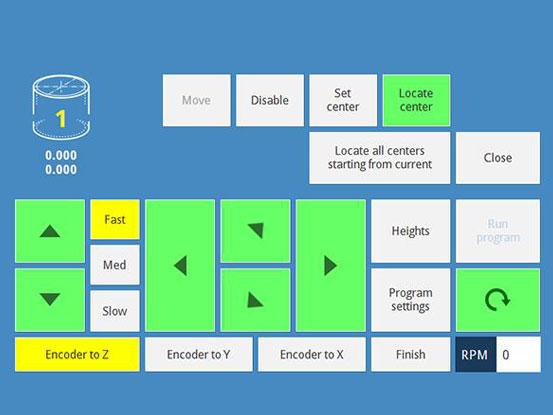

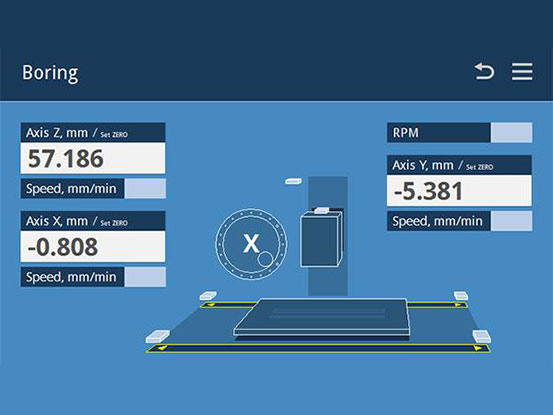

  • Swing arm control panel with double touch screens
  • Electronic Handwheel for manual displacement on 3 Axis (Fast-Medium-Fine speeds)
  • Full automatic and programmable working modes for boring and milling operations
  • WI-FI and LAN connections for support and service
  • PV0160 pair of parallel supports
  • PV0021 large clamps (2 pcs.)
  • PV0022 small clamps (4 pcs.)
  • Wrench set
  • Instruction manual

Accessories and spare parts

Comec ACF200 CNC cylinder boring-resurfacing machine

PV1516
60° – 90° V-block blueprinting mounting fixture

Comec ACF200 CNC cylinder boring-resurfacing machine

PV0025
Pair of fast clamping column

Comec ACF200 CNC cylinder boring-resurfacing machine

PV0160
Pair of parallel supports

Comec ACF200 CNC cylinder boring-resurfacing machine

UT1390
ALP insert tool holder for UT1392

Comec ACF200 CNC cylinder boring-resurfacing machine

UT1392
ALP insert for aluminum with prechambers

Comec ACF200 CNC cylinder boring-resurfacing machine

UT1320
3/8” CBN/PCD insert tool holder

Comec ACF200 CNC cylinder boring-resurfacing machine

B03560
Ø 35÷60 mm L = 330 mm boring kit with dial gauge adjustment

Comec ACF200 CNC cylinder boring-resurfacing machine

B06085
Ø 60÷85 mm L = 320 mm boring kit with dial gauge adjustment

Comec machines C03560

C03560
Ø 35÷60 mm L = 330 mm boring kit with pre-setting system

Comec machines C06085

C06085
Ø 60÷85 mm L = 320 mm boring kit with pre-setting system

Comec machines C85170

C85170
Ø 85÷170 mm L= 360 mm boring kit with pre-setting system

Comec machines B85170

B85170
Ø 85÷170 mm L = 360 mm boring kit dial gauge adjustment

Comec machines PF0320

PF0320
1/2” CBN or PCD milling plate dia. 320 mm (available only for ACF)

Comec machines UT1330

UT1330
1/2”CBN/PCD insert tool holder

Comec machines UT1345

UT1345
3/8” CBN Insert for cast iron

Comec machines UT1346

UT1346
3/8” PCD Insert for aluminium

Comec machines SSR200

SSR200
Spindle storage rack
