Comec FSV100 Seat and guide machine

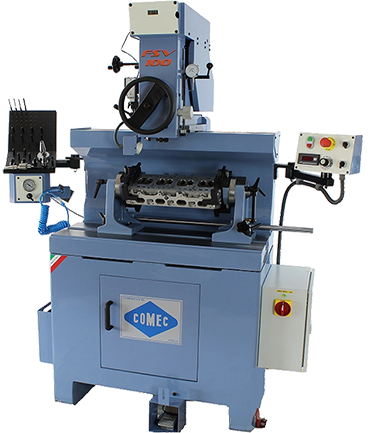

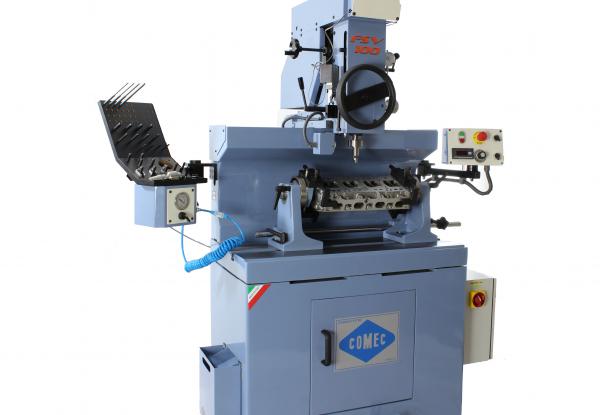

The Comec FSV100 Valve seat and guide machine has been specially developed for cylinder heads from cars and small trucks. The machine is very easy to operate and extremely precise. This creates a perfect end result.

h

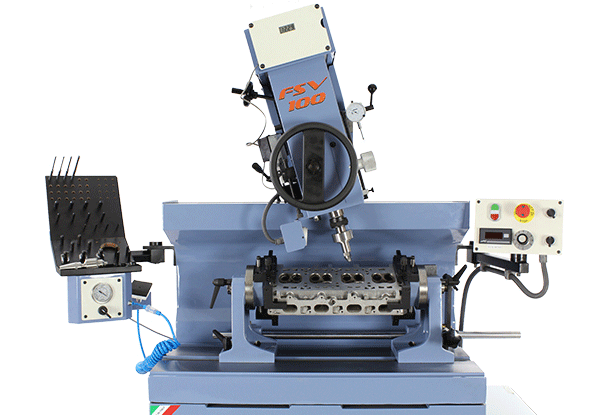

Comec FSV100 Seat and guide machine

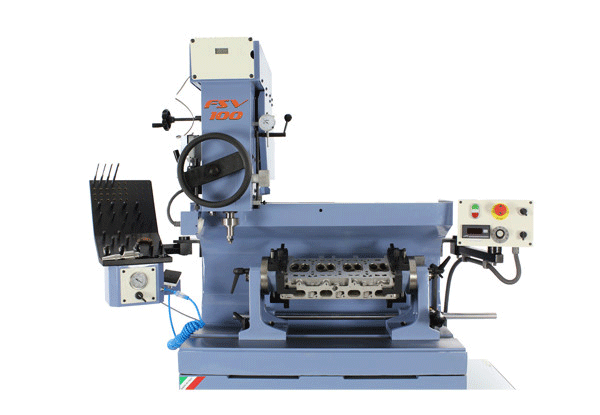

The movable head can be moved very lightly through the air cushion over which it moves. This allows the head to be positioned very quickly and accurately to place the pilot in the valve guide.

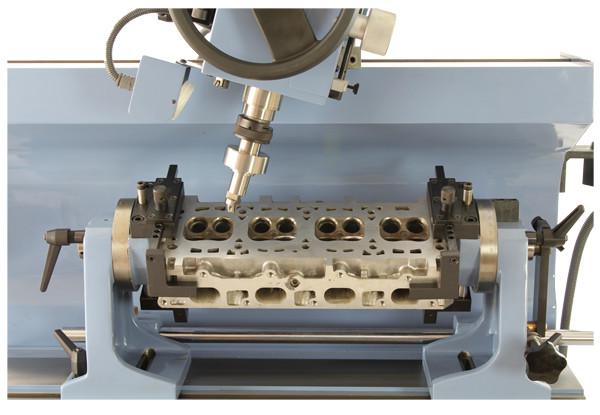

The fixed pilot, in combination with the tool head on a spherical adapter, guarantees fast and correct alignment and centering. Thanks to the fast front wheel and the fine micrometric adjustment knob, these ensure a perfect tool speed.

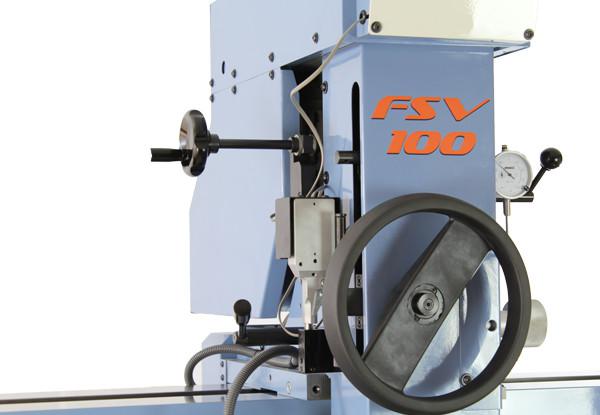

Tool vibrations are prevented by the rigid structure of the 360 ​​° rotating armature. This results in a high quality finish. Mounting and securing the cylinder head can be very simple and quick. The adjustment is made by the micrometric adjustment handwheel with digital readout.

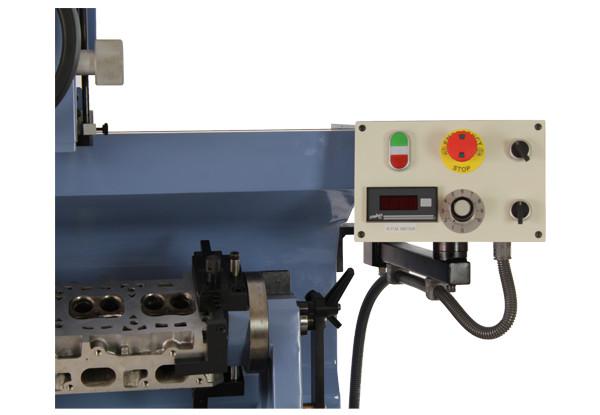

Various handy accessories, such as the vacuum tester, a bright LED machine light, tool holder and the storage drawer are part of the standard equipment.

Comec FSV100 Valve seat machine
Comec FSV100 Valve seat machine
Comec FSV100 Valve seat machine
Comec FSV100 Valve seat machine
Comec FSV100 Valve seat machine
Comec FSV100 Valve seat machine
Comec FSV100
Comec FSV100

Specifications Comec FSV100

Max cylinder head dimensions (LxWxH) 746x228x150 mm
Valve seat diameter range 14÷76 mm
Spindle diameter 56 mm
Spindle toper ISO 30
Spindle speed (range) 0-500 RPM
Spindle motor power 0,55kW
Spinde travel/Stroke vertical 180 mm
Work head travel horizontol-airfloot/airclamp 736 mm
Work head travel In/Out-airfloot/airclamp50 mm
Work head tilt (either side of vertical zero) ±15°
Maximum distance from table to spindle 473 mm
Working air pressure 6 bar
Dimensions (LxWxH)100x1170x2210 mm
Weight 710 Kg

Standard equipment

  • Air float Work Head for light positioning
  • Air pressure filter/regulator
  • Universal 360 degree roll over Cylinder Head fixture
  • Adjustable Clamping Kit for special cylinder heads
  • Hardened spindle with taper tool holder
  • Infinitely variable spindle speed
  • Adjustable end stroke
  • Electronic level with readout
  • Cutting depth measuring dial gauge
  • APM100 Ball head drive adaptor
  • TH0375 Tool holder mandrel for 9,52 mm pilots
  • CUT2000 insert tool holder (18-30 mm)
  • CUT2001 insert tool holder (28-40 mm)
  • CUT2002 insert tool holder (40-60 mm)
  • TSF010 Tool setting fixture
  • Vacuum tester complete with pads
  • LED lighting system

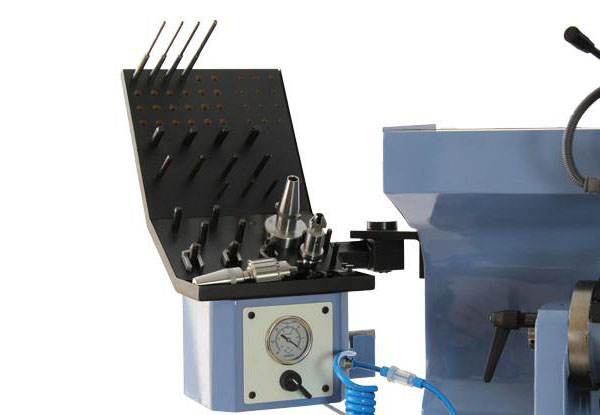

  • Swing arm tool storage Cabinet
  • Removable Chip tray
  • Wrench set
  • Instruction manual

Accessories and spare parts

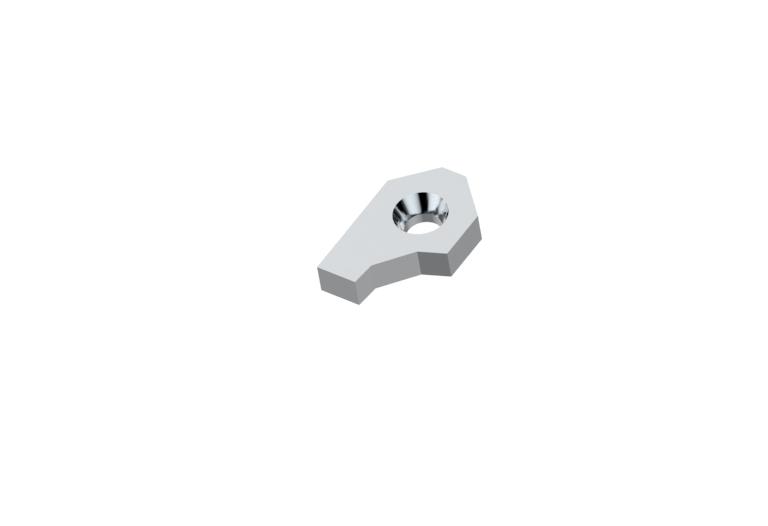

Multi-angle cutting Insert – A style

UTxxxx- A
Multi-angle cutting Insert – A style

Multi-angle cutting Insert – B style

UTxxxx- B

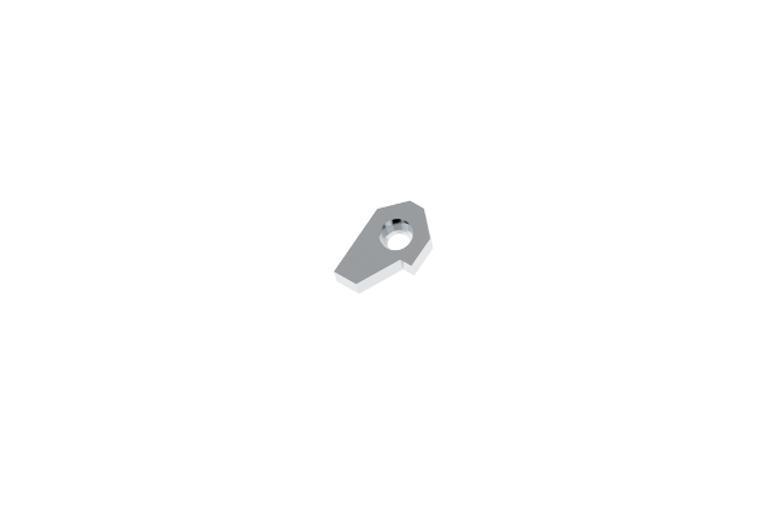

Multi-angle cutting Insert – B style

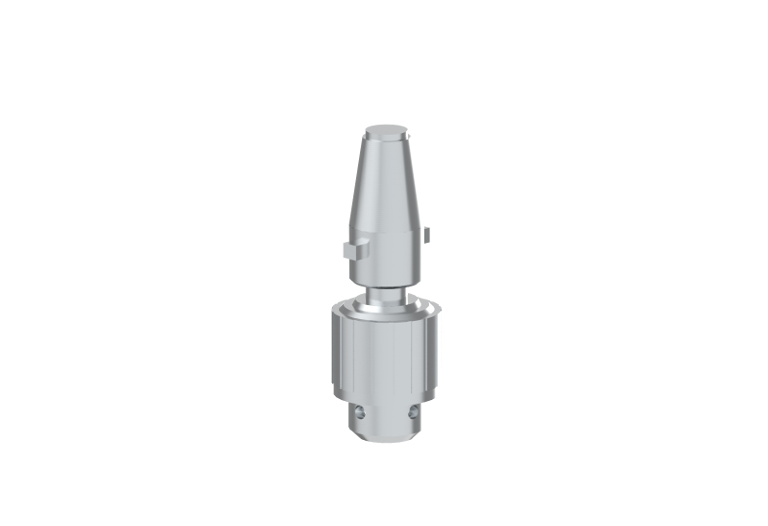

Drill chuck dia. 3÷16 mm with adapter taper ISO-30

MPP316
Drill chuck dia. 3÷16 mm with adapter taper ISO-30

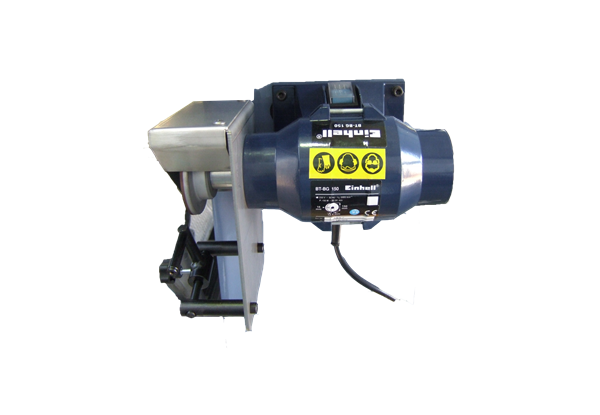

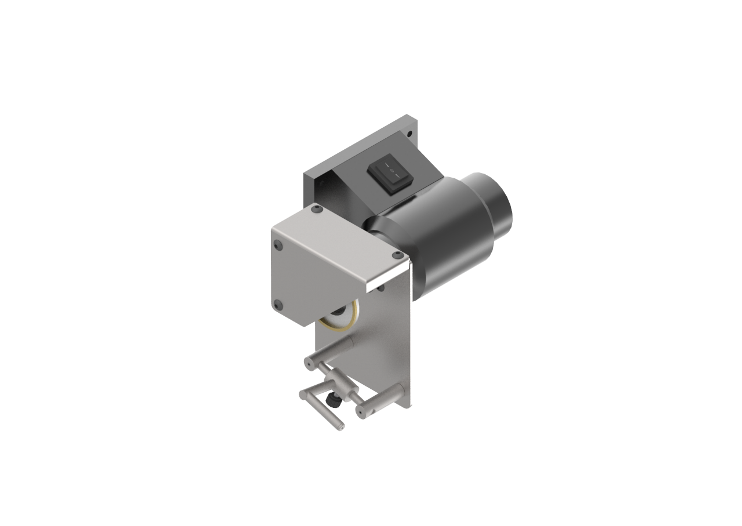

Tool sharpening attachment with diamond wheel

FSV500
Tool sharpening attachment with diamond wheel

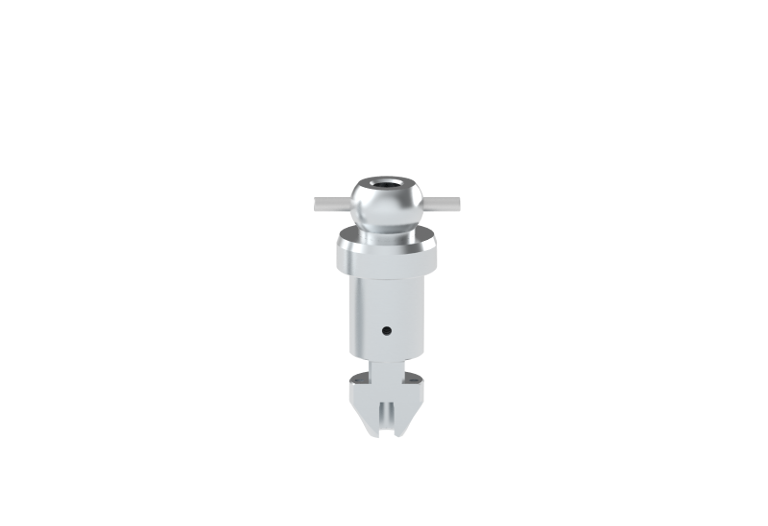

Ball head Tool holder

TH0375
Ball head Tool holder

Ball Head drive adaptor

APM100

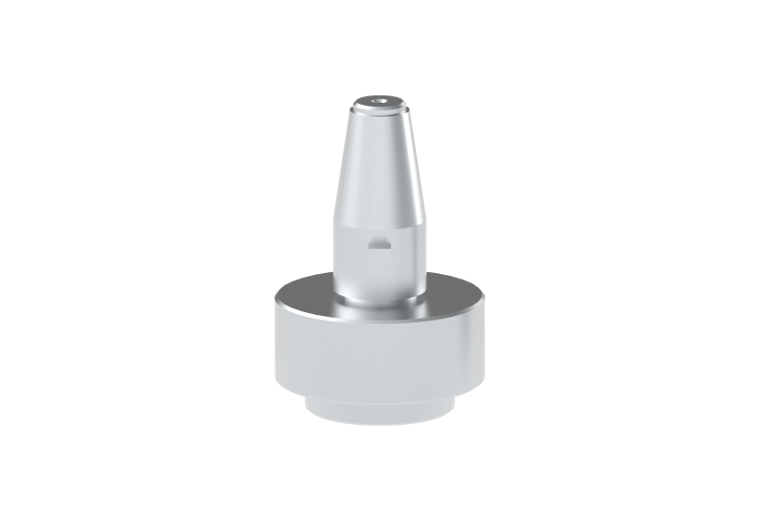

Ball Head drive adaptor

Tool Setting Fixture

TSF010

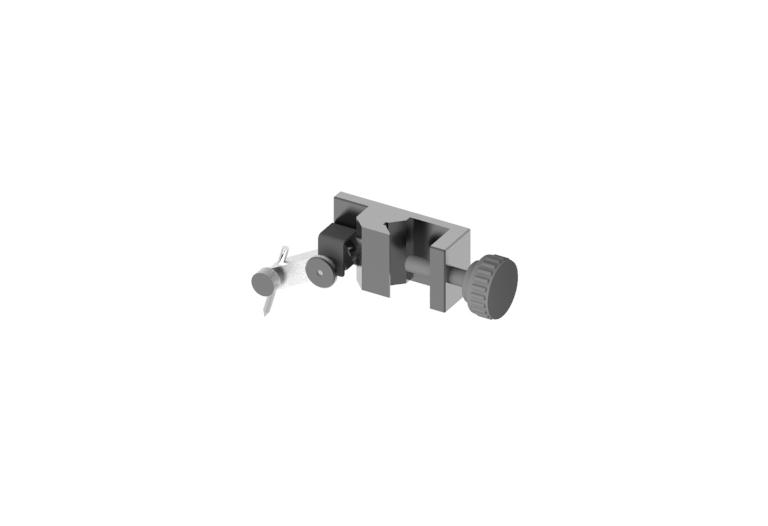

Tool Setting Fixture

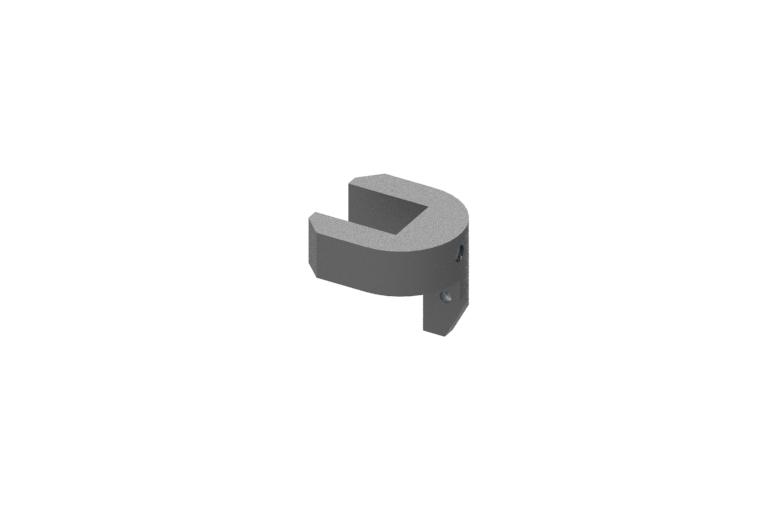

Comec FSV100 Insert holder

CUTxxxx
Insert holder

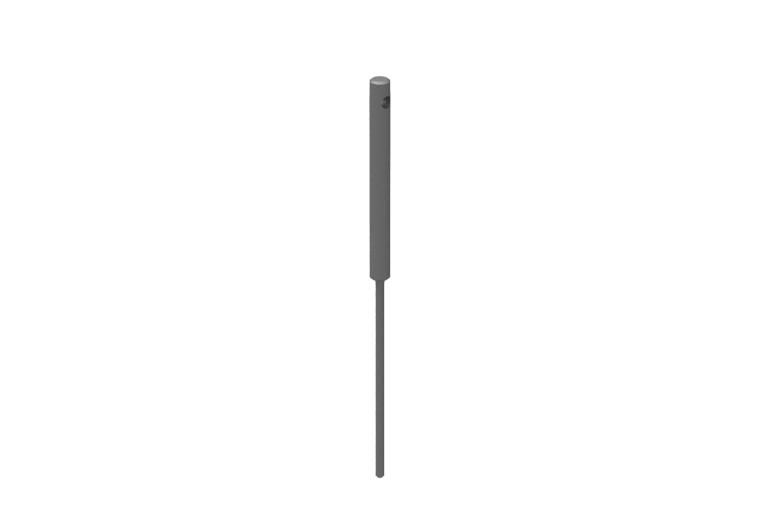

Comec FSV100 Fixed Tapered Carbide Pilot (Standard Shank 9.52 mm – .375”)

CPxxxx
Fixed Tapered Carbide Pilot (Standard Shank 9.52 mm – .375”)

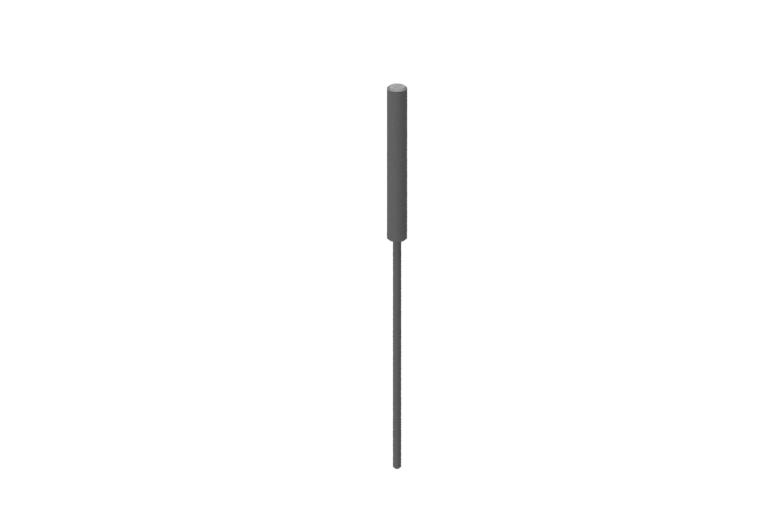

Comec FSV100 Fixed Tapered Carbide Pilot (Mini Shank 6,00 mm – .236”)

MPxxxx
Fixed Tapered Carbide Pilot (Mini Shank 6,00 mm – .236”)

Get in touch

Comec FSV100

For more information, you can also visit our other website www.ftfmachines.com
