Comec AC170 boring machine for car & truck engines

The Comec AC170 boring machine is specially designed for the overhauling of engine blocks of passenger cars and trucks. Engine blocks with a cylinder diameter from 30 up to 170 mm can be machined.
Due to the application of technical innovative solutions, the performance of this Comec AC170 boring machine is improved and offers more possibilities. Because we test our machines extensively, we offer the guarantee of excellent quality, workmanship and precision.

h

Comec AC170 General information

All machine parts supplied as standard ensure that you can work faster. The rotational speed of the adjustable boring bar’s also ensures the best results and finish.

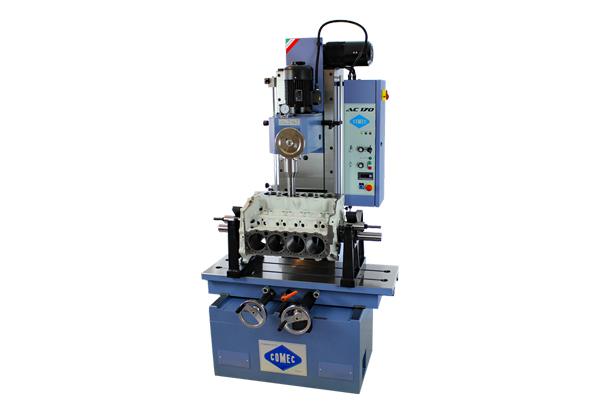

Comec Machines AC170 cylinder boring machine for car and truck engines

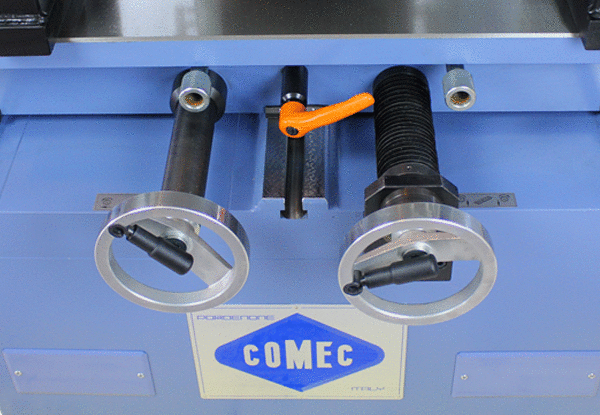

Comec Machines AC170 cylinder boring machine for car and truck engines

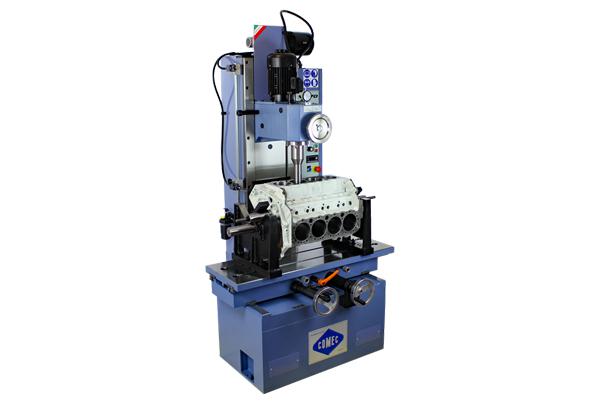

Comec Machines AC170 cylinder boring machine for car and truck engines

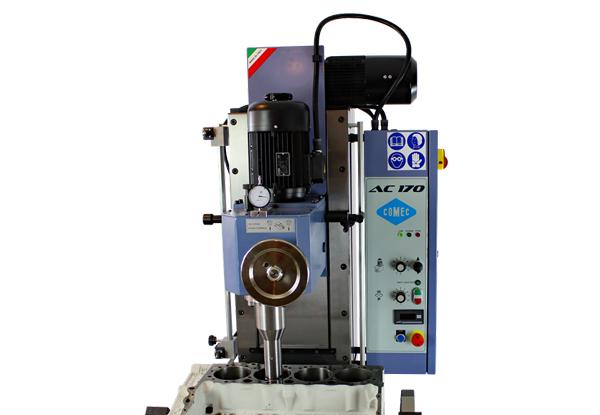

Comec Machines AC170 cylinder boring machine for car and truck engines
Comec Machines AC170 cylinder boring machine for car and truck engines

Comec AC170 Specifications

Boring range30÷170 mm
Max Vertical travel of the Head670 mm
Max distance from head to table940 mm
Distance from spindle center to column290 mm
Spindle rotation speed (adjustable)75÷700 rpm
Spindle feed0÷175 mm/min.
Table surface1040x370 mm
Max longitudinal table travel1000 mm
Max transverse table travel200 mm
Spindle motor power1.5 kW
Rapid head feed motor power0.37 kW
Dimensions (LxWxH)1030x1020x2000 mm
Net weight1150 Kg
Gross weight1330 Kg

Standard equipment

  • Adjustable spindle speed with digital indicator
  • Adjustable boring bar feed
  • Adjustable table feed (only model ACF)
  • Tool setting dial indicator with magnetic base
  • Depth of boring device with dial indicator
  • Precision centering device with dial gauge
  • Adjustable control stop
  • PV0160 Pair of parallel supports
  • Wrench set
  • Instruction manual

Accessories and spare parts

PV1516 - V-block blueprinting mounting fixture

PV1516
60° – 90° V-block blueprinting mounting fixture

Pair of fast clamping column

PV0025
Pair of fast clamping column

Pair of parallel supports

PV0160
Pair of parallel supports

ALP insert tool holder for UT1392

UT1390
ALP insert tool holder for UT1392

Ø 35-60 mm L = 330 mm boring kit with dial gauge adjustment

B03560
Ø 35÷60 mm L = 330 mm boring kit with dial gauge adjustment

Ø 60-85 mm L = 320 mm boring kit with dial gauge adjustment

B06085
Ø 60÷85 mm L = 320 mm boring kit with dial gauge adjustment

Ø 35-60 mm L = 330 mm boring kit with pre-setting system

C03560
Ø 35÷60 mm L = 330 mm boring kit with pre-setting system

Ø 60-85 mm L = 320 mm boring kit with pre-setting system

C06085
Ø 60÷85 mm L = 320 mm boring kit with pre-setting system

Ø 85-170 mm L= 360 mm boring kit with pre-setting system

C85170
Ø 85÷170 mm L= 360 mm boring kit with pre-setting system

Ø 85-170 mm L = 360 mm boring kit dial gauge adjustment

B85170
Ø 85÷170 mm L = 360 mm boring kit dial gauge adjustment
