Comec RP1400CNC resurfacer

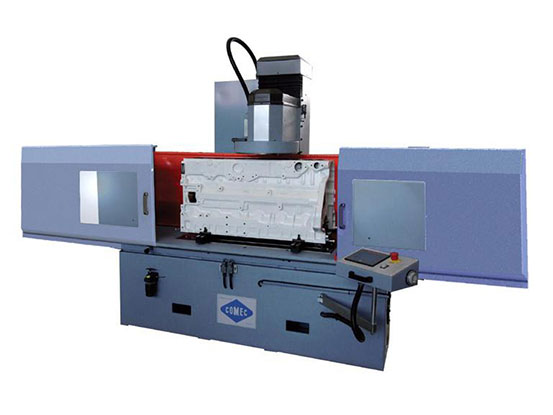

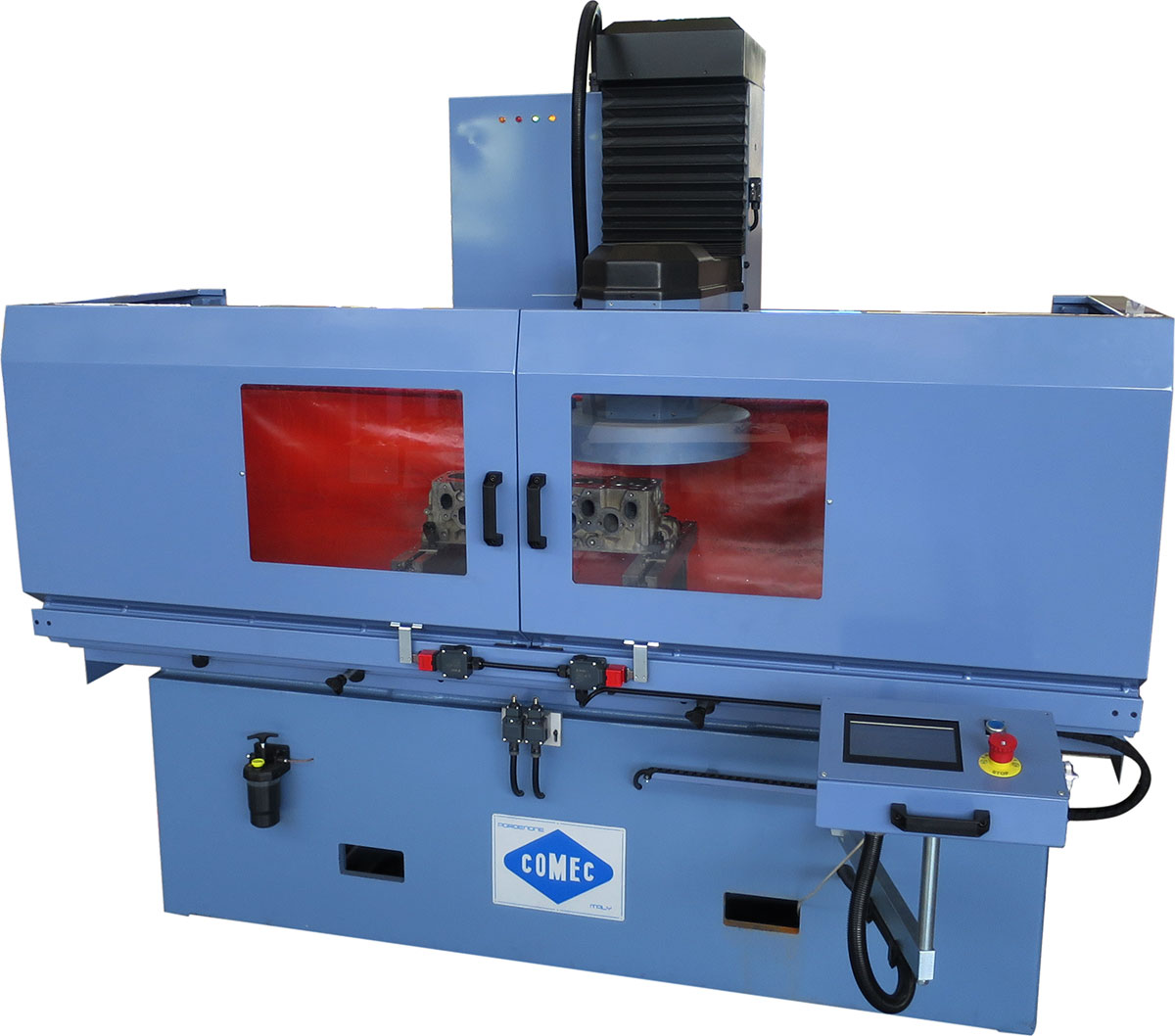

The Comec RP1400CNC is a CNC Controlled resurfacing machine and is specially designed for the resurfacing of car and truck engine blocks and cylinder heads. But is also used in industrial workshop for flat surfaces that require a high level of finishing and accuracy.

h

Comec RP1400CNC resurfacer

The Comec RP1400CNC resurfacer construction technology combines highly innovative solutions, such as the brushless motor for the automatic and precise positioning of the milling cutter plate – that is controlled by the CNC – with tested technologies, like the linear guides and recirculating-ball feed screws.

The machine is equipped with an inverter to smoothly control the axes and the rotation speed of the milling cutter. Also the feed speed can be monitored.

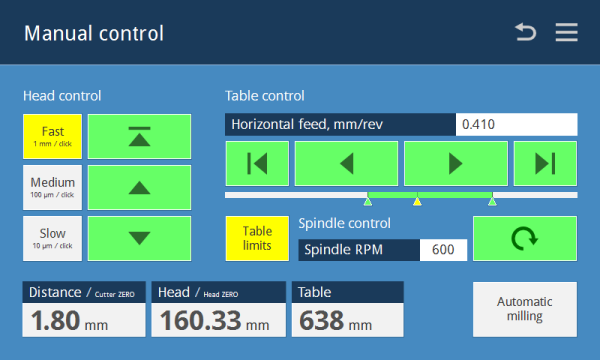

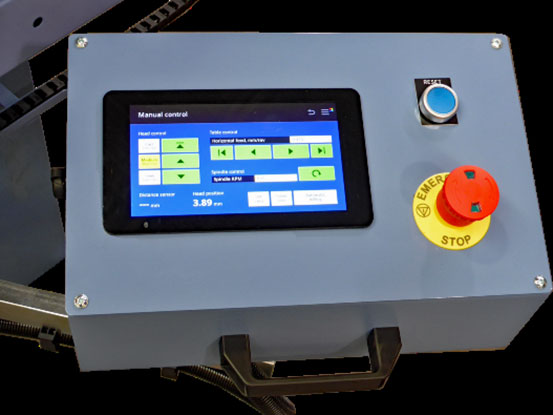

The entire machine is operated using an industrial touchscreen with a simple interface and intuitive software.

In addition, the Comec RP1400CNC resurfacer can be supplied with a milling plate with tool holder of CBN-PCD with a diameter of 405 mm to display cast iron or aluminum surfaces. For heads with front chambers you can use a special tool for a perfect finish.

Comec RP1400CNC resurfacer
Comec RP1400CNC resurfacer
Comec RP1400CNC resurfacer
Comec RP1400CNC resurfacer
Comec RP1400CNC resurfacer
Comec RP1400CNC resurfacer
Comec RP1400CNC resurfacer

Comec RP1400 CNC specifications

Table travel1400 mm
Max working length1195 mm
Max working width405 mm
Min - Max working height190÷710 mm
Useful table surface1100x335 mm
Milling cutter diameter405 mm (16”)
Spindle rotation speed300÷1200 RPM
Variable table feed speed0÷1500 mm/min
Spindle motor2,2kW
Table motor0.75 kW
Feed torque motor1.27 Nm
Dimensions (LxWxH)2500x1000x1900 mm
Weight1410 kg

Standard equipment

  • Table and head feed with recirculating-ball screw
  • Ø 405 mm milling plate with CBN insert
  • Touch screen CNC control panel

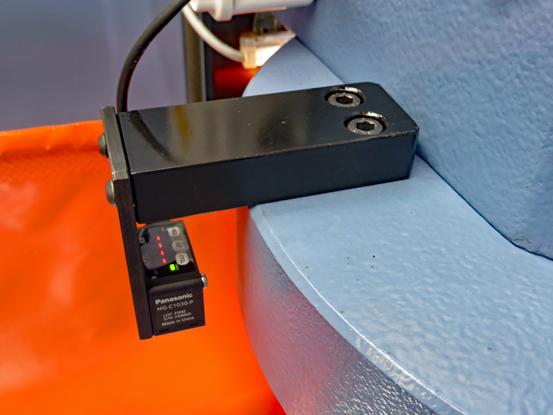

  • Laser sensor for scanning workpiece

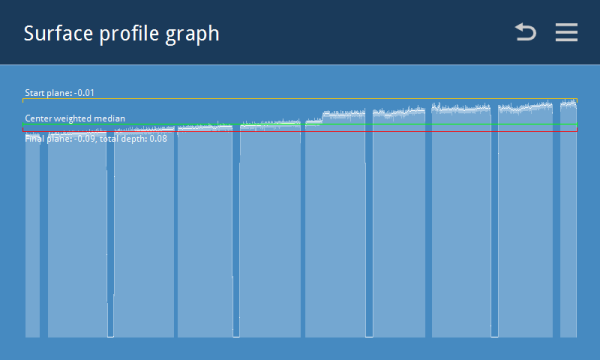

  • Surface profile graph

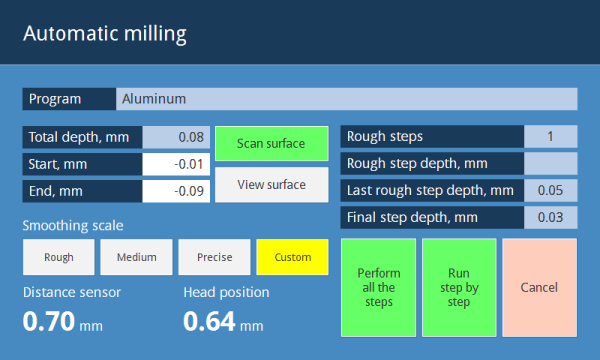

  • Fully automatic cycle

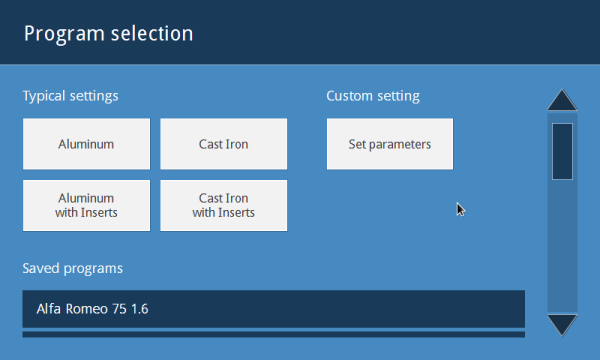

  • Database with preloaded working cycles and possibility to customise them
  • Estimated cycle time
  • Safety guard with sliding doors
  • PV0160 Pair of parallel supports
  • PV0021 Large clamps (2 pcs.)
  • PV0022 Small clamps (4 pcs.)
  • Lubricant for slides
  • Wrench set
  • Instruction manual

Accessories and spare parts

Comec machines PVA015

PVA015
Adjustable universal fixture wit parallels

Comec-machines-PV0007

PVA0007
PV0007 Pair of parallel supports  H=49mm

Comec-machines-PV0015

PV0015
Adjustable universal fixture with mounting plate

Comec-machines-PV0160

PV0160
Pair of parallel supports

Comec-machines-UT1320

UT1320
3/8” CBN/PCD insert tool holder

Comec machines UT1355

UT1355
1/2” CBN Insert for cast iron

Comec machines UT1356

UT1356
1/2” PCD Insert for aluminium

Comec machines UT1390

UT1390
ALP insert tool holder for UT1392

Comec machines UT1392

UT1392
ALP insert for aluminum with prechambers

Comec machines UT1330

UT1330
1/2”CBN/PCD insert tool holder

Comec machines UT1345

UT1345
3/8” CBN Insert for cast iron

Comec machines UT1346

UT1346
3/8” PCD Insert for aluminium

Comec machines GL0400

GL0400
Guide line laser sensor
