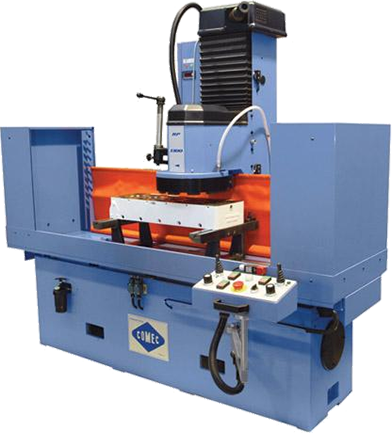

Comec RP1300 Head and block resurfacer

The Comec RP1300 Head and block resurfacer is specially designed for the resurfacing of car and truck engine blocks and cylinder heads. But is also used in industrial workshop for flat surfaces that require a high level of finishing and accuracy.

h

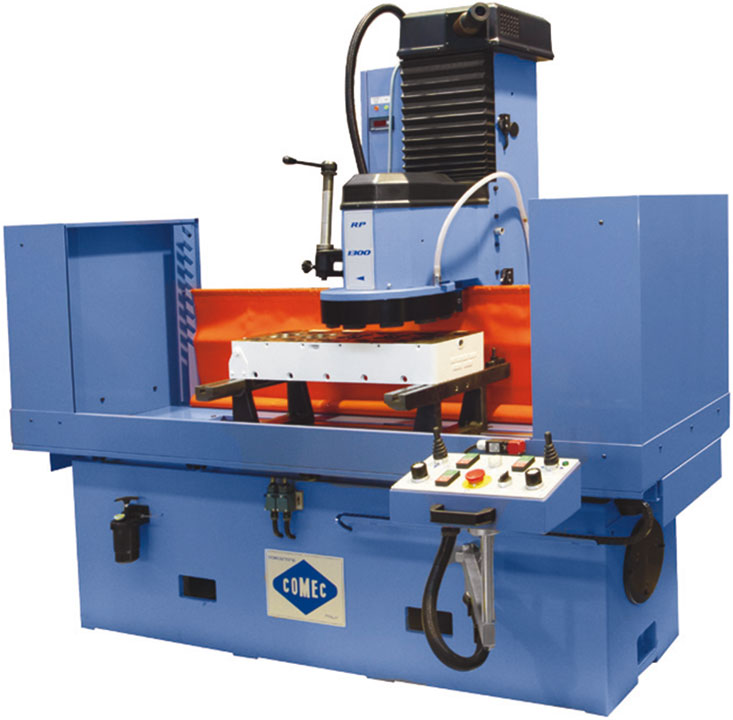

Comec RP1300 Head and block resurfacer

The flat and V-shaped sliding plates on the base are moored in such a way that an optimum and smooth displacement of the table is obtained. This is a well-known and tested solution by us.

The Comec RP1300 is full of innovative solutions, such as:

  • Table feed through a recirculating ball screw with adjustable speed feed.
  • Inverter for spindle smooth speed regulation
  • Automatic cycle for milling operations

The Comec RP1300 comes standard with a segment holding plate for grinding cast iron or aluminum cylinder heads with pre-chambers and with an aluminum surface treatment tool.

Other accessories are available on demand, such as:

  • A milling cutter plate with eight inserts
  • The CBN-PCD tool holder for high speed resurfacing or cast iron and aluminum.

Comec RP1300 Head and block resurfacer Specifications

Table travel1400 mm
Maximum working lenght1225 mm
Maximum working width355 mm (405 mm Optional)
Maximum working height720 mm
Useful table surface920x230 mm
Grinding wheel diameter355 mm (405 mm Optional)
Spindle rotation speed300÷1500 RPM
Adjustable table feed speed0÷1500 mm/min
Spindle motor4.0 kW
Table motoreducter0.75 kW
Rapid feed motor0.5 kW
Cooling pump motor0.25 kW
Dimensions (LxLxH)2180x1280x2000 mm
Weight1410 kg

Standard equipment

  • Adjustable table speed with recirculating-ball screw
  • Segmented grinding wheel complete with abrasive sectors for cast iron (10 pcs.)
  • Splash and safety guard
  • Fast motorized head feed
  • Cooling system complete with pump
  • Settling tank
  • Abrasive sector dresser
  • RTV099 Starwheel dresser
  • UT0003 Head resurfacing tool
  • PV0160 Pair of parallel supports
  • PV0021 Large clamps (2 pcs.)
  • PV0022 Small clamps (4 pcs.)
  • Lubricant for slides
  • Emulsifiable liquid
  • Wrench set
  • Instruction manual

Accessories and spare parts

Comec RP1300 Head and block resurfacer

PVA015
Adjustable universal fixture wit parallels

Comec RP1300 Head and block resurfacer

PVA0007
PV0007 Pair of parallel supports  H=49mm

Comec RP1300 Head and block resurfacer

PV0015
Adjustable universal fixture with mounting plate

Comec RP1300 Head and block resurfacer

PV0160
Pair of parallel supports

Comec RP1300 Head and block resurfacer

PL000A
Motor driven rotary table

Comec RP1300 Head and block resurfacer

RP1361
CBN/PCD/ALP Milling plate dia. 355 mm (14”)

Comec RP1300 Head and block resurfacer

UT0018
Aluminum with Pre-chamber insert tool holder

Comec RP1300 Head and block resurfacer

UT0023
3/8” CBN/PCD insert tool holder

Comec machines - UT0017

UT0017
Insert tool holder with UT0014

Comec machines - UT0014

RP1361
CBN/PCD/ALP Milling plate dia. 355 mm (14”)

Comec machines UT1355

UT1355
1/2” CBN Insert for cast iron

Comec machines UT1346

UT1356
1/2” PCD Insert for aluminium

Comec machines - UT0003

UT0003
Head resurfacing tool

Comec machines UT1330

UT1330
1/2″ Insert tool holder for UT1355 (CBN), UT1356 (PCD)

Comec machines RP1364

RP1364
Dimensions 410 mm (16”) 1/2” CBN or PCD milling plate

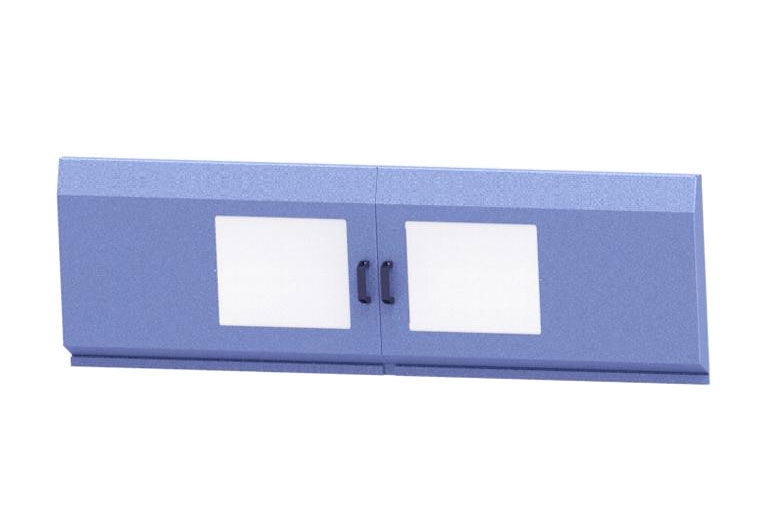

Comec-machines-PSC130

PSC130
Splash and safety guard with sliding doors

Comec machines UT1320

UT1320
3/8” CBN/PCD insert tool holder
