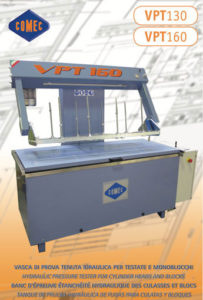

Comec VPT160 pressure tester for cylinder heads and blocks

The Comec VPT160 tester tank is a 590 l. hot water immersion tester for the easily and precisely detection of any failure and wear on cylinder heads and blocks.

h

Comec VPT160 pressure tester

The tank, complete with its cover, is manufactured in stainless steel and perfectly insulated to avoid heat dispersion. It is filled with water that is heated by two powerful 4,5 kW independent heating elements controlled by an automatic timer, which includes heating programmes to reduce electric consumptions.

The temperature can be set from 30° up to 90° C
This brand new model enables the operator to work heads of up to 1340mm of width.

Comec VPT160 Specifications

Maximum cylinder head capacity1350x410x410 mm
Tank capacity590 l
Maximum cradle travel550 mm
Heating elements2 x 4,5 kW
Adjustable work temperature30 - 90° C
Cradle rotation speed4 rpm
Cradle up-down speed60 mm/sec
Hydraulic station motor0,75 kW
Cradle gearmotor0,25 kW
Dimensions (LxWxH)1950x1100x1800 mm
Weight610 Kg

Standard equipment

  • Flat cylinder head support parallels
  • Adjustable support parallels for wedge-shaped cylinder heads
  • Fixing crossbeams of Plexiglas plate with plates
  • L=380 mm fixing tension rod with nuts and washers
  • 500x250x30 mm Plexiglas plate
  • 800x250x30 mm Plexiglas plate
  • 500x500x8 mm Rubber sheet
  • 500x500x3 mm Rubber sheet
  • Side-locking plate with quick-release coupling
  • Standard equipment instruction manual

Get in touch

Comec VPT160 pressure tester

For more information, you can also visit our other website www.ftfmachines.com
